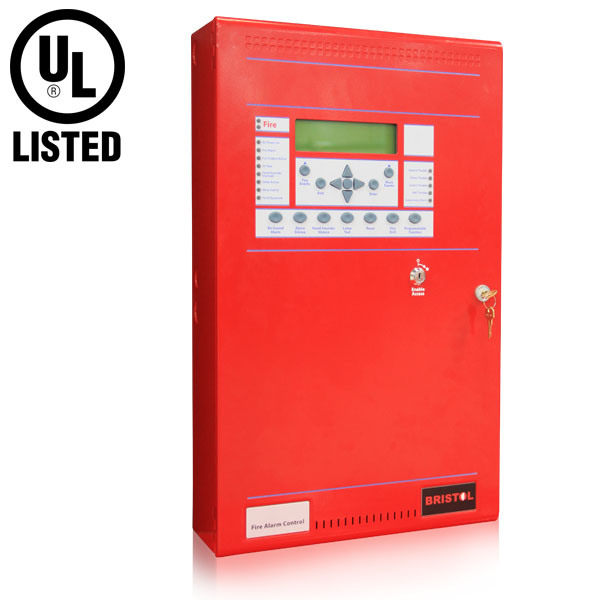

Intelligent Addressable Fire Alarm Control Panel
SPECIFICATIONS
| MODEL Series | ADX-2NR/4NR |
| Standard | ANSI/UL 864 |
| Primary AC | 120VAC @ 2.1 Amps 60hz or 220VAC @ 1.1Amps 50hz |
| Output DC | 24VDC @ 5.25 Amps (4 Amps available for system power) |
| Power Supply | 5.25 Amps integrated |
| Charger Current | 1.5 Amps max. |
| Dimensions | 14.5" W x 24" H x 5" D |
| Weight | 31 lbs. (without batteries) |
| Weight | 31 lbs. (without batteries) |
| Color | Red (optional gray) |
| Color | Red (optional gray) |
| Material | ABS/steel enclosure |
| Display | 8 line x 40 character LCD (320 characters total) |
| Network | Dual RS485 ports (64 panels max.) |
| Zones | 500 network wide software zones per system |
| SLC loops | 2 or 4 (class A, "style 6 or 7" or class B, "style 4") |
| Devices per loop | 127 sensors & modules, plus 127 analog sounder bases, 254 total |
| Addresses per panel | (800 addresses + sub-addresses max. per panel) |
| NAC Outputs | 4) 2.5 Amps @ 24VDC (class B) |
| Relay Outputs | (5) Form C 1 Amp @ 30VDC |
| Voltage Outputs | (3) 500mA @ 24VDC |
| Aux. Power | 500mA @ 24VDC |
| Aux. Inputs | (8) digital pull downs |
| PC Port / Printer | RS232 |
| Operating Temp. | 32°F (0°C) 120°F (49°C) |
| Relative Humidity | 85% RH Non-Condensing |
Network LCD Annunciator
SPECIFICATIONS
| MODEL | ADX-NANN |
| Standard | ANSI/UL 864 |
| Input DC | 24VDC @ 270mA Max. ( + Aux. Power Load) |
| Aux. Output DC | 24VDC @ 500mA |
| Dimensions | 14.5" W x 10" H x 3.3" D |
| Weight | 9.4 lbs |
| Color | Red |
| Material | ABS/steel enclosure |
| Operating Temp. | 32°F (0°C) 120°F (49°C) |
| Operating Temp. | 32°F (0°C) 120°F (49°C) |
| Relative Humidity | 85% RH Non-Condensing |
| Relative Humidity | 85% RH Non-Condensing |
| Display | 8 line x 40 character LCD (320 characters total) |
| Network | Dual RS485 ports (64 nodes max.) |
| Relay Outputs | (4) Form C 1amp@30VDC |
| PC Port | RS232 |
| Printer Port | RS232 |
| Expansion Port | RS485 (for optional expansion boards) |
Serial LCD Annunciator
SPECIFICATIONS
| MODEL | ADX-SANN |
| Standard | ANSI/UL 864 |
| Current Draw | Standby: 20mA @ 24VDC; Alarm: 110mA @ 24VDC |
| Dimensions | ADX-SANN: 10.88" W x 8.00" H x 1.38" D Back Box: 10.38" W x 7.38" H x 1.25" D |
| Weight | 3.5 lbs |
| Color | Red (optional charcoal) |
| Material | ABS/steel enclosure |
| Operating Temp. | 32°F (0°C) 120°F (49°C) |
| Operating Temp. | 32°F (0°C) 120°F (49°C) |
| Relative Humidity | 85% RH Non-Condensing |
| Relative Humidity | 85% RH Non-Condensing |
| Display | 8 line x 40 character LCD (320 characters total) |
| Network | RS485 port |

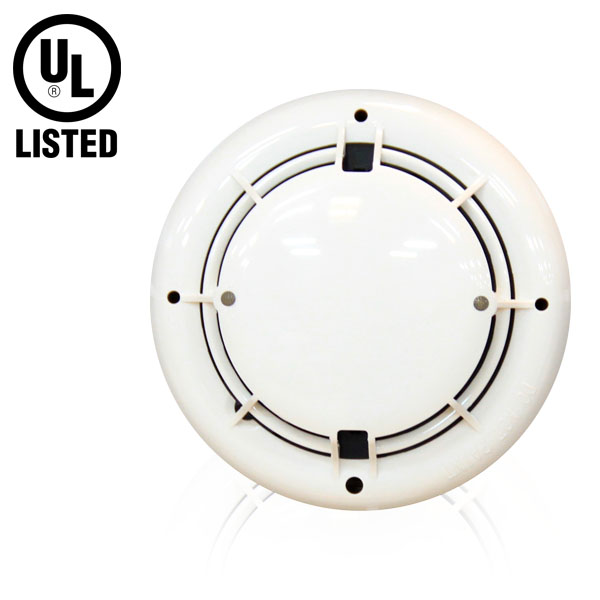

Intelligent Smoke Detector
SPECIFICATIONS
| MODEL | STK-S01 |
| Standard | ANSI/UL 268 |
| Operating Voltage | 17-41 VDC |
| Standby Current | 450μA |
| Alarm Current | 540μA |
| Transmission Method | DCP - Digital Communication Protocol |
| Maximum Humidity | 95% RH Non-Condensing |
| UL Temperature Range | 32°F to 115°F (0° C to 47° C) |
| Operating Temperature Range | 14°F to 122°F (-10°C to 50°C) |
| Sensitivity Range | 0.7-4.0%/FT@300FPM 0.7-3.86%/FT@2000FPM 0.7-2.65%/FT@4000FPM |
| Air Velocity Range | 0-4000 fpm |
| Color & Case Material | Bone - ABS Blend |
| Weight | 3.4oz (5.1 oz. with 4" base) |
| Bases | STK-B14, STK-B26, STK-B3SB, STK-B14SCI, STK-B26SCI |

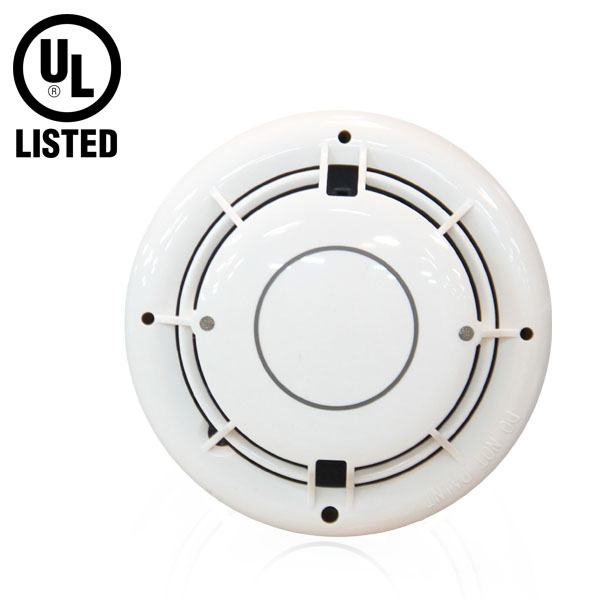

Intelligent Heat Detector
SPECIFICATIONS
| MODEL | STK-H02 |
| Standard | ANSI/UL 521 |
| Operating Voltage | 17-41 VDC |
| Standby Current | 350μA |
| Alarm Current | 500μA |
| Transmission Method | DCP - Digital Communication Protocol |
| Rate of Rise | 15°F/Min (8.3° C/Min) |
| UL Temperature Range | 135°F to 190°F (57.2° C to 87.8° C) |
| UL Maximum Spacing | 70 feet |
| Maximum Humidity | 95% RH Non-Condensing |
| Color & Case Material | Bone - ABS Blend |
| Weight | 3.2oz (4.9 oz. with 4" base) |
| Bases | STK-B14, STK-B26, STK-B3SB, STK-B14SCI, STK-B26SCI |

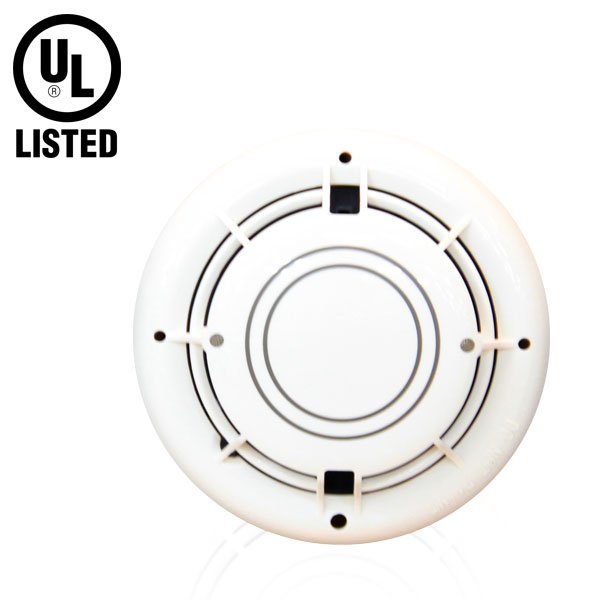

Intelligent Multi-sensor
SPECIFICATIONS
| MODEL | STK-M03 |
| Standard | ANSI/UL 268 |
| Operating Voltage | 17-41 VDC |
| Standby Current | 450μA |
| Alarm Current | 450μA |
| Transmission Method | DCP - Digital Communication Protocol |
| Maximum Humidity | 95% RH Non-Condensing |
| UL Temperature Range | 135°F to 150°F (57° C to 65° C) |
| Operating Temperature Range | 14°F to 122°F (-10°C to 50°C) |
| Sensitivity Range | 0.7-4.0%/FT@300FPM 0.7-3.86%/FT@2000FPM 0.7-2.65%/FT@4000FPM |
| Air Velocity Range | 0-4000 fpm |
| Color & Case Material | Bone - ABS Blend |
| Weight | 4.2oz (5.9 oz. with 4" base) |
| Bases | STK-B14, STK-B26, STK-B3SB, STK-B14SCI, STK-B26SCI |
Fast Response Contact Module
SPECIFICATIONS
| MODEL | MID-M10 |
| Standard | UL 864 |
| Supply Voltage (S-SC) | 25.3 ~ 39 VDC |
| Average Current Consumption (On S-SC Line) | 339μA (Typical); 358μA (Alarm) |
| Programmable Input | 1 Monitoring Inputs |
| EOL Device | 10.0K ohms Resistor |
| Max. Quantity Per Loop | 127 |
| Max. Quantity Per Loop | 127 |
| Dimensions | 1.75"W x 2.37"H x 0.5"D |
| Operating Temperature | 32°F (0°C) ~ 120°F (49°C) |
| Mounting | 2" square electrical box |
| Relative Humidity | 90% RH Non-Condensing |

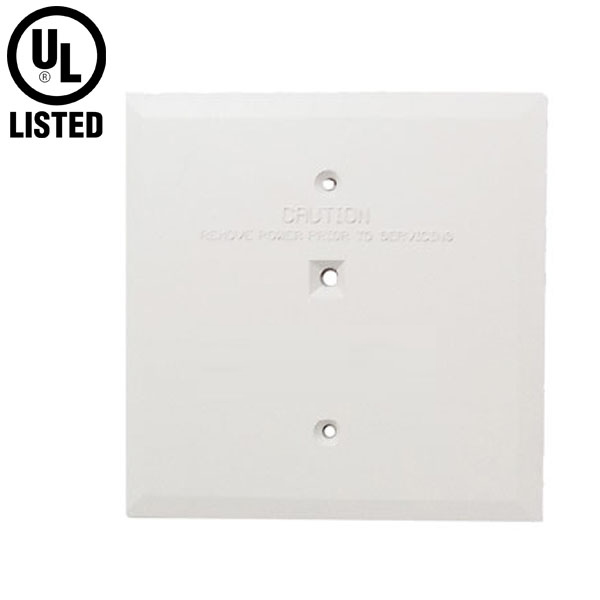

Conventional Zone Input Module
SPECIFICATIONS
| MODEL | MID-CZM |
| Standard | UL 864 |
| Supply Voltage (S-SC) | 25.3 ~ 39 VDC |
| Auxiliary Supply Voltage | 18.8 ~ 27.2 VDC |
| Average Current Consumption (On S-SC Line) | 670μA |
| 2-Wire Detector Loop Current Standby Detector Load | 1mA Max. |
| From Auxiliary Supply | 60mA Max. |
| EOL Device | 4.7K ohms Resistor |
| Max. Quantity Per Loop | 127 |
| Max. Quantity Per Loop | 127 |
| Alarm Threshold Level | < 1.5K ohms |
| Alarm Threshold Level | < 1.5K ohms |
| Wiring Threshold Level | > 2.5K ohms & < 6K ohms |
| Open Circuit Threshold Level | > 10K ohms |
| Max. 2-Wire Conventional Detector (Loop Resistance) | 50 ohms (total wire length) |
| Dimensions | 4.2"W x 4.7"H x 1.4"D |
| Operating Temperature | 32°F (0°C) ~ 120°F (49°C) |
| Mounting | 4" square electrical box |
| Relative Humidity | 90% RH Non-Condensing |
Dual Relay Module
SPECIFICATIONS
| MODEL | MID-R20/I & MID-R21/I |
| Standard | UL 864 |
| Supply Voltage (S-SC) | 25.3 ~ 39 VDC |
| Average Current Consumption | 350μA( Typical) 405μA (Alarm) |
| Contacts | R2ML: 2A @ 30VDC / 0.5A @ 120 VAC R2MH: 8A @ 30VDC / 4.8A @ 250VAC |
| SCI On Resistance | 40m ohm Max. (Normal Condition) |
| SCI Fault Detection Threshold | 12 volts (Typical) |
| SCI Isolation Current (Short Circuit Condition) | 10mA (Typical) |
| SCI Isolation Current (Short Circuit Condition) | 10mA (Typical) |
| Dimensions | 4.2"W x 4.7"H x 1.4"D |
| Ambient Temperature | 32°F (0°C) ~ 120°F (49°C) |
| Mounting | 4" square electrical box |
| Relative Humidity | 90% RH Non-Condensing |
Supervised Output Module
SPECIFICATIONS
| MODEL | MID-S31 |
| Standard | UL 864 |
| Supply Voltage (S-SC) | 25.3 ~ 39 VDC |
| Auxiliary Supply Voltage | 24 VDC |
| Average Current Consumption | 154μA (Ty pical) Maximum |
| Current Consumption on Auxiliary Power Lines | Typical 1.15mA |
| Maximum Output Current | 2A @ 2 4 VDC Power Limited |
| Solenoid Current Consumption | Maximum : 443mA |
| EOL Device | 10K ohm s Resistor & 1N5817 Diode |
| Dimensions | 4.2"W x 4.7"H x 1.4"D |
| Operating Temperature | 32°F (0°C) ~ 120°F (49°C) |
| Mounting | 4" square electrical box |
| Maximum Output Current | 2A@24VDC power limited |
| Relative Humidity | 90% RH Non-Condensing |
Short Circuit Isolator
SPECIFICATIONS
| MODEL | MID-SCI |
| Standard | UL 864 |
| Supply Voltage (S-SC) | 33 ~ 41 VDC |
| Average CurrentConsumption | 270μA (Typical) 10 mA (Active Short Condition) |
| Visual Indicator (Yellow LED) | Normal: Off Active: On |
| Dimensions | 4.2"W x 4.7"H x 1.4"D |
| Operating Temperature | 32°F (0°C) ~ 120°F (49°C) |
| Mounting | 4" square electrical box |
| Relative Humidity | 90% RH Non-Condensing |
