FIRE HYDRANT / PILLAR HYDRANT

Fire hydrants are connection point by which firefighters can tap into a supply of water when battling fire. GSFP manufactures a wide range of hydrants to accommodate all demand sizes.

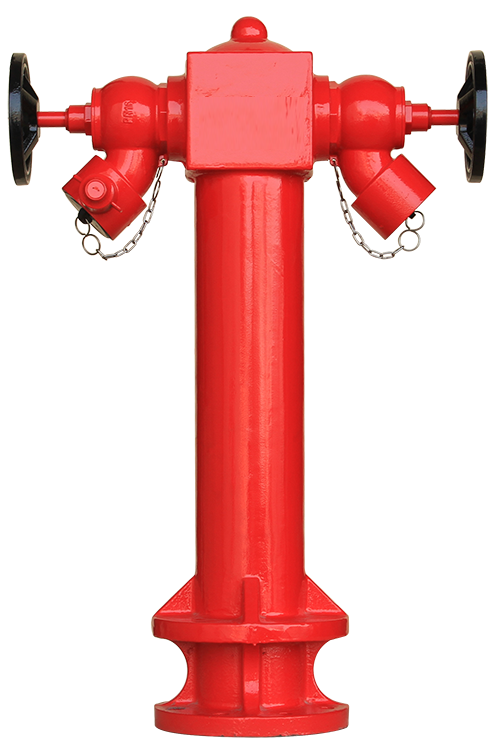

Wet Barrel
GSFP

SPECIFICATIONS

MODEL BFE-WT04D
Working Pressure 16bar
Test Pressure 20bar
Inlet DN100 Flange EN1092 PN16
Outlet 2 x Oblique Landing Valve DN65 Female Instantaneous BS336 with Cap & Chain
Total Height 800mm
Body Material Cast Iron
Valve Material LG2

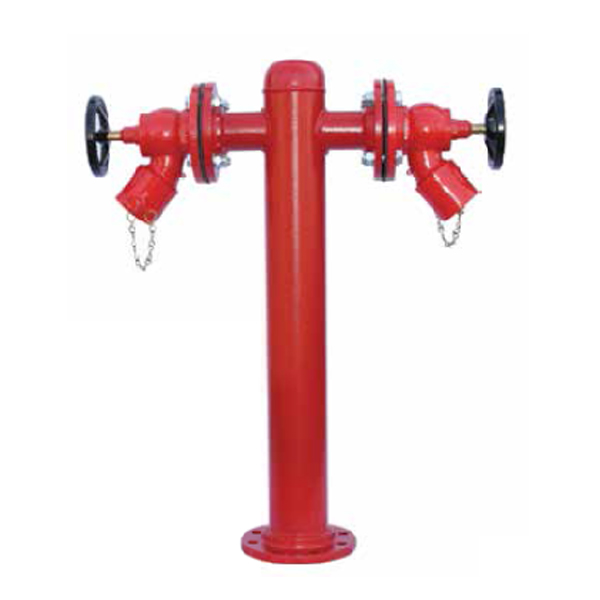

GSFP

SPECIFICATIONS

MODEL BF-WT04 BF-WT06
Inlet DN100 Flange EN1092 PN16 DN150 Flange EN1092 PN16
Outlets 2 x Oblique Landing Valve DN65 Female Instantaneous BS336 with Cap & Chain
Working Pressure 10bar
Test Pressure 20bar
Total Height 915mm
Body Material Carbon Steel
Valve Material LG2

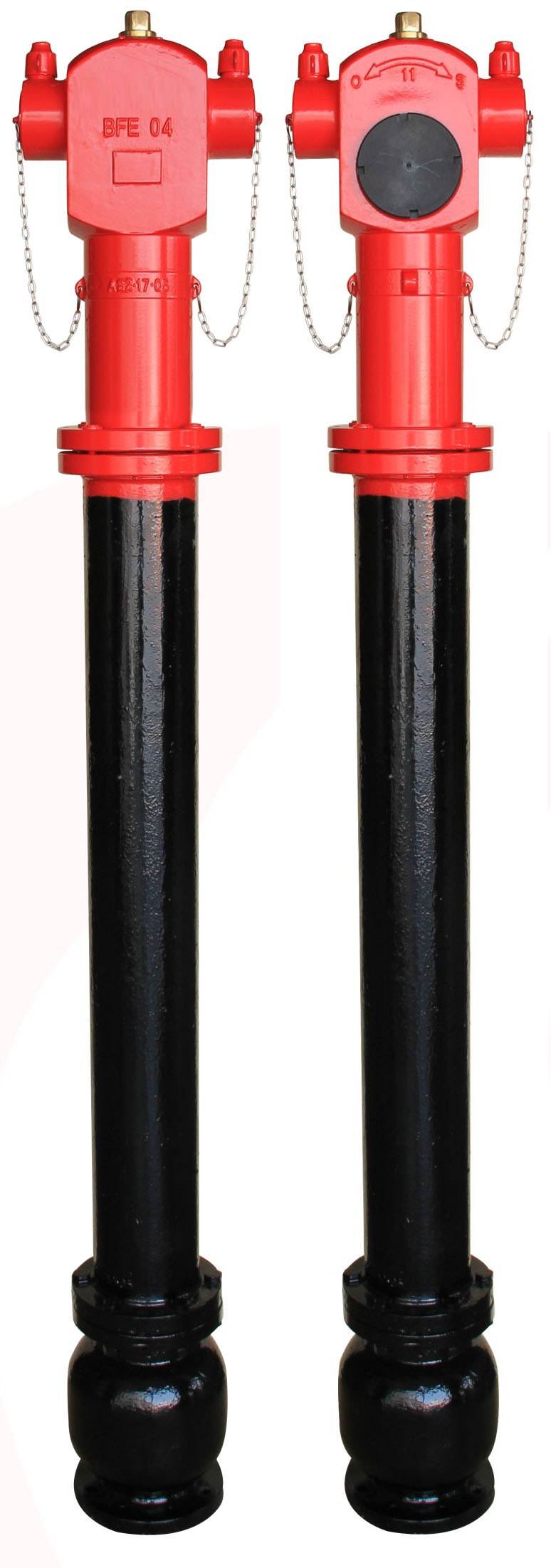

Dry Barrel
GSFP

SPECIFICATIONS

MODEL BFE04/S BFE04/B BFE06/S BFE06/B
Inlet DN100 Flanged EN1092 PN16 DN150 Flanged EN1092 PN16
Connection Type Straight Bend Straight Bend
Standard BS EN 14384
Outlets 2 x DN65 Female Instantaneous BS336 with Cap & Chain
1 x 4" BSP Pumper Coupling (Plugged)
Working Pressure 16bar
Test Pressure 24bar
Full Opening 11 Turns
Min. Operating Torque ≤125Nm
Min. Strength Torque ≥ 250 Nm
Body Material Cast Iron + Ductile Iron

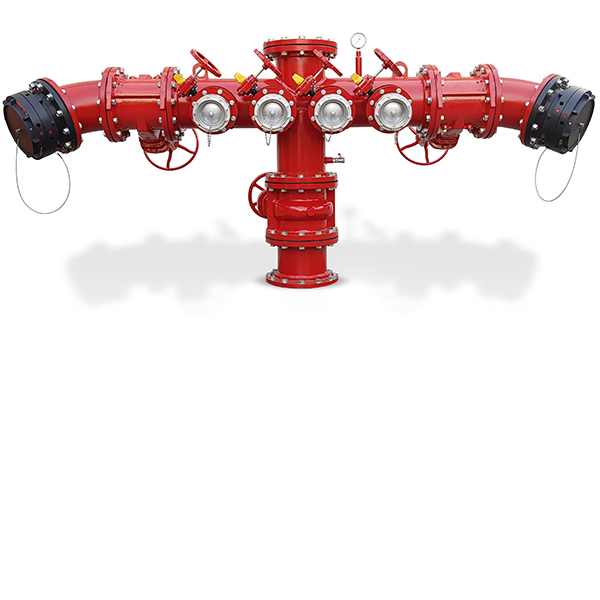

Six-Way Manifold Hydrant
GSFP

Technical Details

MODEL MH300-4S150/2S300
Medium Water
Max. Working Pressure 15bar (218psi)
Test Pressure 30bar (435psi)
Water Supply Velocity 4m/s
Inlet ANSI B16.5 Class 150 Flange
Outlets 4x6" Storz Connection with Butterfly Valve
2x12" Storz Connection with Butterfly Valve
Body Carbon Steel Seamless Pipe ASTM A53 Sch.40 Gr. B
Paint Surface Preparation to code SSPC-SP-10 "Near White Blast" 1.5 to 3.0 mills
Prime Coat Vinyl (Dry Film Thickness 35 to 100 microns)
Finish Coat Acrylic Polyurethane (Dry Film Thickness 60 to 100 microns)
Options Riser Diameter Header Diameter Header Flow Rate
A 20" 20" 12,000gpm
B 16" 16" 8,000 - 9,000gpm
C 12" 12" 4,500gpm
