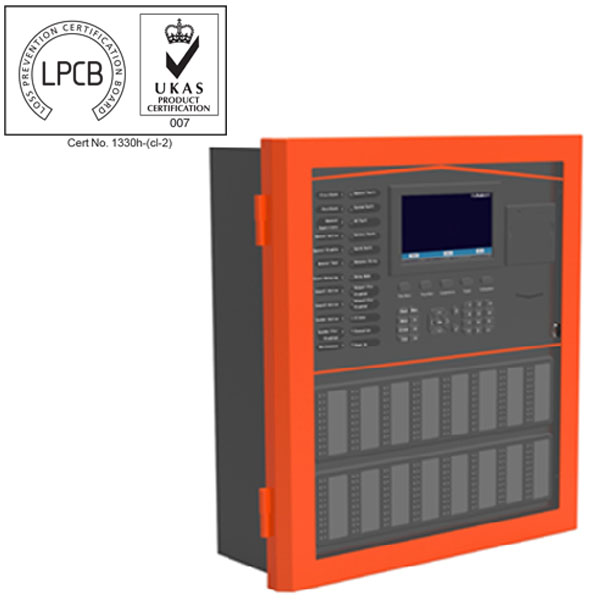

Intelligent Addressable Fire Alarm Control Panel
SPECIFICATIONS
| MODEL Series | IGN-250 |
| Standard | EN54-2: 1997 + A1: 2006 & EN54-4: 1997 + A1: 2002 + A2: 2006 |
| Maximum Loop | 4 with Network Card, 6 Standalone |
| Input Voltage | 240VAC +10%-15%, 50/60Hz |
| Input Current Consumption | 1A |
| PSU Output to CIE | 24.5 to 28.5 VDC |
| Batteries | 2 x 12V / 24AH |
| Panel to panel communication | Can Bus [loop] |
| Number of Panels | 512 |
| Interface Port | USB, RS485, RS232 Serial, Ethernet |
| Memory [Non-Volatile] | 1,000 Fire Events, 10,000 General Event |
| Zones | 3,000 programmable |
| Total Group | 3,000 programmable: Sounder=1,000/Common=2,000 |
| Protocol/Addressing | T&A, Value range from 1 to 254 |
| Protection | Built-in 4kV Surge protection |
| Power rating | 16 to 24Vdc |
| Cabling | 1.2Km Max Length / 2 x 1.5mm2 solid core Fire resistance |
| Programmable Relays | 4 circuits: Normally Open/Close |
| Programmable Input | 1 Circuit: Power limited 24Vdc |
| Programmable Auxiliary Power | 19 t0 28 VDC (Note: Current Limited) |
| Fixed Outputs (FPE/Sounder) | 2 Circuits: 18 t0 28 VDC (Note: Current Limited) |
| Indicator | 24 LED Status/ 16 Zone Indicator |
| Display | 7" TFT Touch Screen |
| Keypad | 5 Brigade buttons and Programming Keypad |
| Material / Color | Flat sheet Metal / with outer glass door, Orange stripe |
| Dimension Lx W x H | 530 mm x 490 mm x 135 mm |
| Weight | 16.70 Kg |
| Humidity | 0 to 95% Relative Humidity, Non condensing |

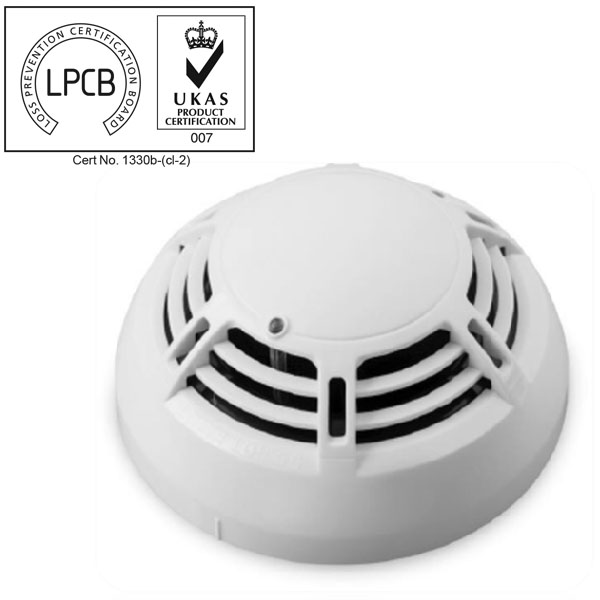

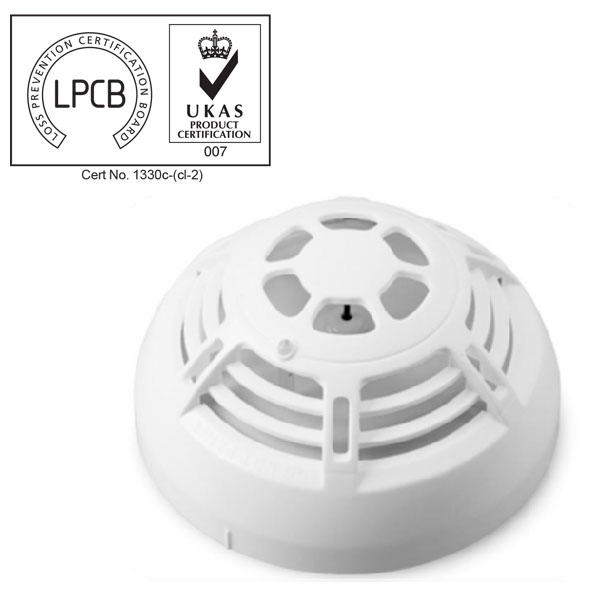

Intelligent Smoke Detector
SPECIFICATIONS
| MODEL | IGN-7401 |
| Standard | EN54-7 :2000 +A1:2002 +A2:2006 |
| Input Voltage | 24VDC [16V to 28V] |
| Current Consumption | Standby 0.6mA, Alarm: 4mA |
| Protocol/Addressing | T&A, Value range from 1 to 254 |
| Sensitivity | As per stipulated standard |
| Indicator | Single LED / 360 degree Visual |
| Material / Color | ABS / White Glossy finishing |
| Dimension / Height | Diameter 99.7 mm / 57 mm |
| Weight | 145g (with Base), 90g (without Base) |
| Operating Temperature | -10°C to +50°C |
| Humidity | 0 to 95% Relative Humidity, Non condensing |
Intelligent Heat Detector
SPECIFICATIONS
| MODEL | IGN-7402 |
| Compliance | EN54-5 :2000 +A1:2002 |
| Input Voltage | 24VDC [16V to 28V] |
| Current Consumption | Standby 0.6mA, Alarm: 4mA |
| Protocol/Addressing | T&A, Value range from 1 to 254 |
| Heat Class Type | A1R |
| Indicator | Single LED / 360 degree Visual |
| Material / Color | ABS / White Glossy finishing |
| Dimension / Height | Diameter 99.7 mm / 57 mm |
| Weight | 127g (with Base), 72g (without Base) |
| Operating Temperature | -10°C to +50°C |
| Humidity | 0 to 95% Relative Humidity, Non condensing |
Intelligent Multi-sensor
SPECIFICATIONS
| MODEL | IGN-7403 |
| Compliance | EN54-29 |
| Input Voltage | 24VDC [16V to 28V] |
| Current Consumption | Standby 0.6mA, Alarm: 4mA |
| Protocol/Addressing | T&A, Value range from 1 to 254 |
| Smoke Sensitivity | As per stipulated standard |
| Heat Class Type | A2R |
| Indicator | Single LED / 360 degree Visual |
| Material / Color | ABS / White Glossy finishing |
| Dimension / Height | Diameter 99.7 mm / 57 mm |
| Weight | 145g (with Base), 90g (without Base) |
| Operating Temperature | -10°C to +50°C |
| Humidity | 0 to 95% Relative Humidity, Non condensing |

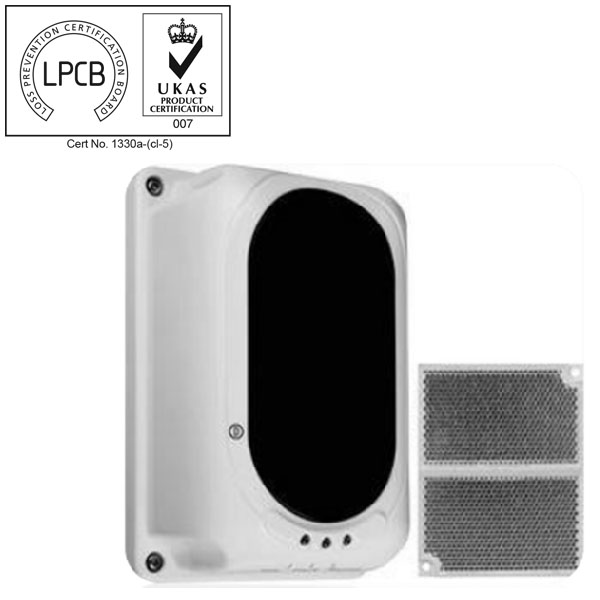

Beam Detector
SPECIFICATIONS
| MODEL | IGN-C7404 |
| Compliance | EN54-12:2002 |
| Operating Voltage | 20 V to 28 V DC |
| Current Parameters | Standby:23mA Commission:56mA Alarm:33mA |
| Beam Sensor Sensitivity [via Encoder] | Level 1: 2.6 dB High Sensitivity |
| Level 2: 3.8 dB Medium Sensitivity | |
| Level 3: 5.8 dB Low Sensitivity | |
| Beam Pathway Length [via Encoder] | Span 1: 8 to 20 meters Short Path (1x mirror reflector required) |
| Span 2: 20 to 40 meters Short Path (1x mirror reflector required) | |
| Span 3: 40 to 70 meters Normal Path (4x mirror reflector required) | |
| Span 4: 70 to 100 meters Long Path (4x mirror reflector required) | |
| Beam Path Angle | ±0.5º Directional |
| Alignment Guide | Laser Beam Pointer |
| Digital Display Guide | Nixie Tube |
| LED Indicator Guide | Red: Fire; Yellow: Fault; Green: Alignment |
| Reset Time | Less than 2 Second (Power Cut) |
| Relay Capacity [Fire & Fault] | Normally Open/ 2.0 A; 30 VDC |
| Material / Color | ABS / White |
| Dimension / Weight | L:190.87 x W:126.87 x H:91.96 mm / 440 gm |
| Weight | 0.130 Kg with base |
| Accessories | Mounting Bracket/ IGN-C7404R 4 x Mirror Reflector |
| Operating Temperature / Protection Rating |
-10°C to 55°C / IP30 [IP66 glue seal-For permanent fixing] |
| Humidity | 0 to 95% Relative Humidity, Non condensing |
Manual Call Point
SPECIFICATIONS
| MODEL | IGN-8401 |
| Compliance | EN 54-11:2001 + A1:2005 |
| Input Voltage | 24VDC [16V to 28V] |
| Current Consumption | Standby 0.6mA, Alarm: 1.8mA |
| Protocol/Addressing | T&A, Value range from 1 to 254 |
| Indicator | Single LED / 360 degree Visual |
| Material / Color | Fireproof ABS / RED Glossy finishing |
| Dimension / Height | 89 mm x 93 mm x 35 mm |
| Weight | 102g (with Base), 80g (without Base) |
| Class | Type A, Indoors |
| Operating Temperature | -10°C to +55°C |
| Humidity | 0 to 95% Relative Humidity, Non condensing |

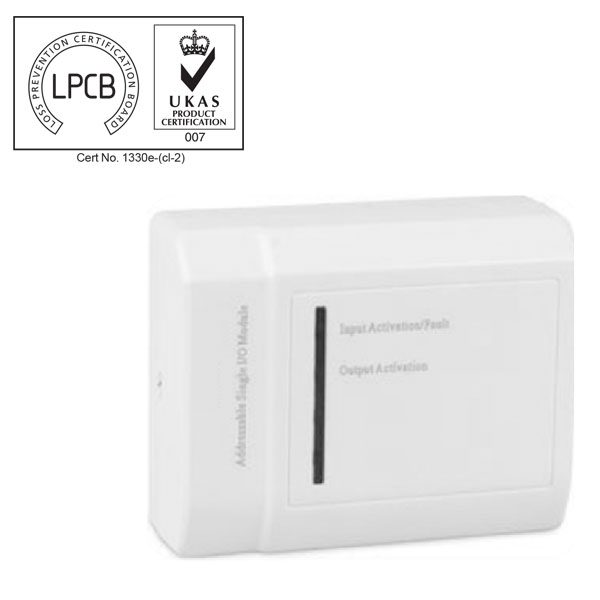

Input/Output Module
SPECIFICATIONS
| MODEL | IM-8412 |
| Standard | EN54-18:2005 |
| Input Voltage | Loop Power:24VDC [16V to 28V]; External PSU: 20 to 28VDC |
| Current Consumption | Standby 0.6mA, Alarm: 1.6mA; External PSU: Standby 0.6mA, Alarm: 45mA |
| Protocol/Addressing | T&A, Value range from 1 to 254 |
| Input Relay | Normally Open dry contact |
| Input Resistance | 5.1Kohms/ ¼ W |
| Indicator Status | Normal: Single blink/Active: Steady/Fault: Double Blink |
| Material / Color | ABS / White Glossy finishing |
| Dimension | 108 mm x 86 mm x38 mm |
| Weight | 170g (with Base), 92g (without Base) |
| Operating Temperature | -10°C to +50°C |
| Ingress Protection Rating | IP30 |
| Humidity | 0 to 95% Relative Humidity, Non condensing |
Short-Circuit Isolator Module
SPECIFICATIONS
| MODEL | IM-8414 |
| Standard | EN54-17:2005 |
| Input Voltage | 24VDC [16V to 28V] |
| Current Consumption | Standby 0.15mA, Alarm: 1.8Ma |
| Maximum Open Voltage (V SO MAX) | 11V |
| Minimum Open Voltage (V SO MIN) | 8V |
| Maximum Close Voltage (V SC MAX) | 3V |
| Minimum Close Voltage (V SC MIN) | 1.4V |
| Maximum Continuous Current (I C MAX) | 500mA |
| Maximum Transient Output Current (I S MAX) | 5mA |
| Maximum Leakage Current (I L MAX) | 2mA |
| Max closed impedance (Z C MAX) | 0.65ohms |
| Protocol/Addressing | T&A |
| Number of monitored | Max 70 Devices |
| Output Impedance | 480 ohms |
| Indicator Status | Indicator Status Normal: Single blink/Active: Steady-on |
| Material / Color | ABS / White Glossy finishing |
| Dimension | 108 mm x 86 mm x38 mm |
| Weight | 152g (with Base), 81g (without Base) |
| Ingress Protection Rating | IP30 |
| Humidity | 0 to 95% Relative Humidity, Noncondensing |

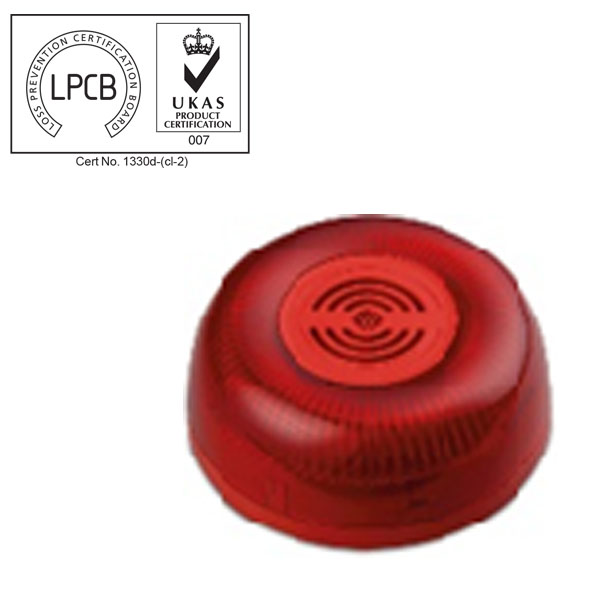

Addressable Sounder Strobe
SPECIFICATIONS
| MODEL | AVI-6401 |
| Standard | EN54-3:2001+A1:2002 + A2:2006 |
| Input Voltage | Loop Power: 24VDC [18V to 27.5V] External PSU: 24 VDC [20V to 27.5V] |
| Typical Current | Loop: Standby 0.6mA, Alarm: 1.5mA External PSU: Standby 0.6mA, Alarm: 15mA |
| Saving Current | Standby 1.2mA, Alarm: 9mA |
| Protocol/Addressing | T&A, Value range from 1 to 254 |
| Tones | 17 Tones (refers to Manual) |
| Address Sequence | Single Address: Evacuate tone |
| Dual Address: | 1st Alert Tone / 2nd Evacuate tone |
| Strobe Light | 10 Highlights LED |
| Material / Color | ABS / Red Glossy finishing |
| Dimension | Diameter 110 mm / 39.6 (with Base) |
| Weight | 176g (with Base), 110g (Without Base) |
| Ingress Protection Rating | IP21 |
| Class | Type A, Indoors |
| Operating Temperature | -10°C to +50°C |
| Humidity | 0 to 95% Relative Humidity, Noncondensing |

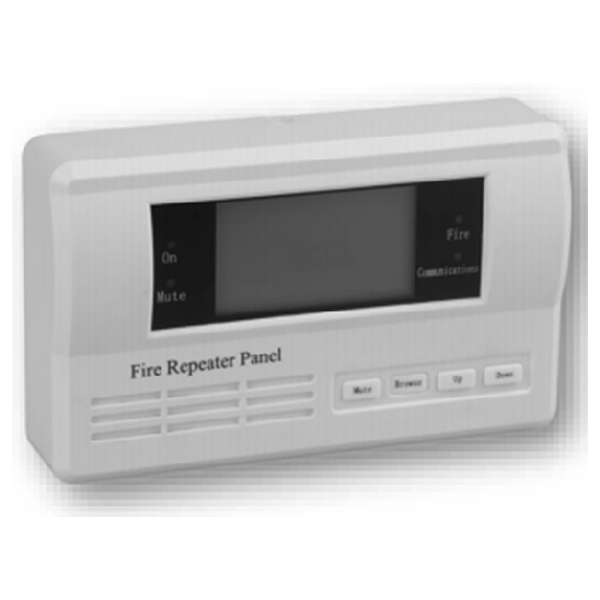

Loop Passive Repeater
SPECIFICATIONS
| MODEL | IGN-5096 |
| Standard | EN 54-2: 1997+A1: 2006 |
| Input Voltage | Loop Power: 24VDC [16V to 28V] External PSU: 24 VDC [20V to 28V] |
| Current Consumption | Loop: Standby 1mA, Alarm: 1.2mA External PSU: Standby 25mA, Alarm: 80mA |
| Memory Capacity | Up to 300 fire event history |
| Number per loop | Up to 254 units (ideal) |
| Material / Color | ABS / White Glossy finishing |
| Dimension | 180mm x 110 mm x44 mm |
| Weight | 300g (with Base), 256g (without Base) |
| Operating Temperature | 0°C to + 40°C |
| Humidity | 0 to 95% Relative Humidity, Noncondensing |

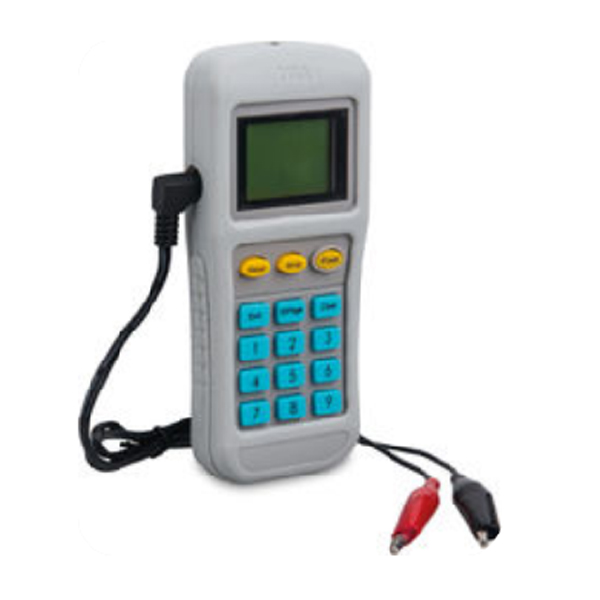

Handheld Programmer
SPECIFICATIONS
| MODEL | 7096-0400 |
| Battery Required | 2X1.5 AA / Included |
| Current Consumption | Standby 0μA, In-use: 3mA |
| Protocol | T&A |
| Material / Color | ABS / Grey Glossy finishing |
| Dimension | 130 mm x 54 mm x28 mm |
| Relative Humidity | 0 to 95% Relative Humidity, Non condensing |

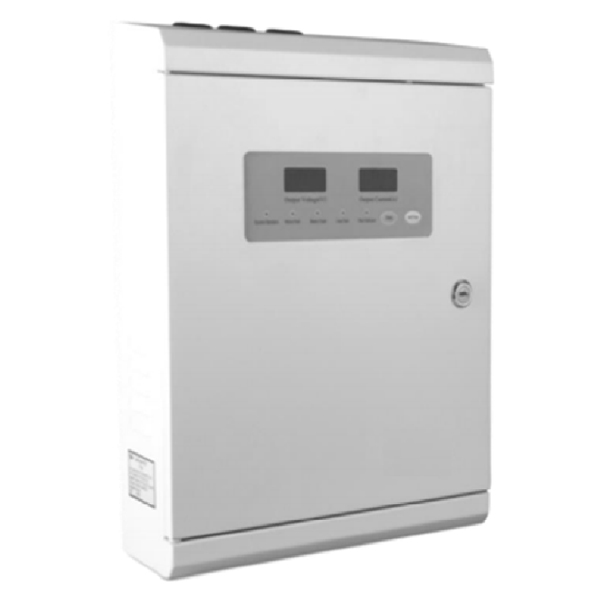

Power Supply Unit
SPECIFICATIONS
| MODEL | 7096-0500 |
| Standard | EN 54-4 |
| Power Supply | Mains: AC220V(110-240V),50/60Hz, ＜130W |
| Backup | 24VDC/12Ah sealed lead-acid battery (Not included) |
| Output Power | 120W (24VDC/5A) |
| Protocol/Addressing | T&A, Value range from 1 to 254 |
| Mains and backup switching time | No delay |
| Indicator | Numerical Display |
| Material / Color | Flat sheet Metal / Light Gray |
| Dimension | 400mm x 320mm x 120mm |
| IP Grade | IP30 |
| Operating Environment | Operating Environment |
| Temperature | -10℃~+60℃ |
| Relative Humidity | ≤95%, non-condensing |
| Atmosphere | 86~106KPa |
