FIRE DETECTION & ALARM SYSTEMS / CONVENTIONAL

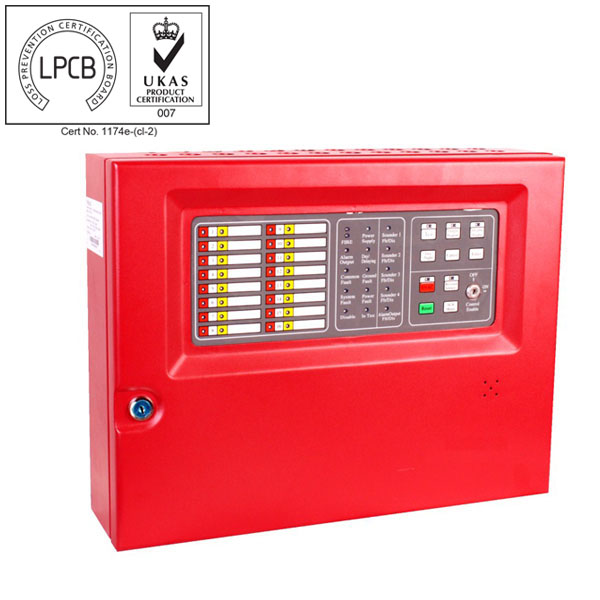

Fire Alarm Control Panel
SPECIFICATIONS
MODEL |
B61-801/02 |
B61-801/04 |
B61-801/08 |
B61-801/16 |
Standard |
EN 54-2 / EN 54-4 |
Zones |
2 |
4 |
8 |
16 |
Power Supply |
220V / 230 VAC / AC110V |
Battery Size |
7Ah / 12V |
Frequency |
50 / 60Hz |
Input Current |
0.35A |
Loop Voltage |
15VDC ~ 28VDC, 300mA |
Fault Output |
Volt-free 1A/24VDC |
Auxiliary Power Output |
15VDC ~ 28VDC, Standby 20mA and Action 500mA |
Temperature |
0⁰C ~ 40⁰C |
Humidity |
≤ 95%, non-condensing |
Dimension |
430*330*105mm |
Installation |
Wall-mounted |
Cable |
1.5mm2 or above shield cable |

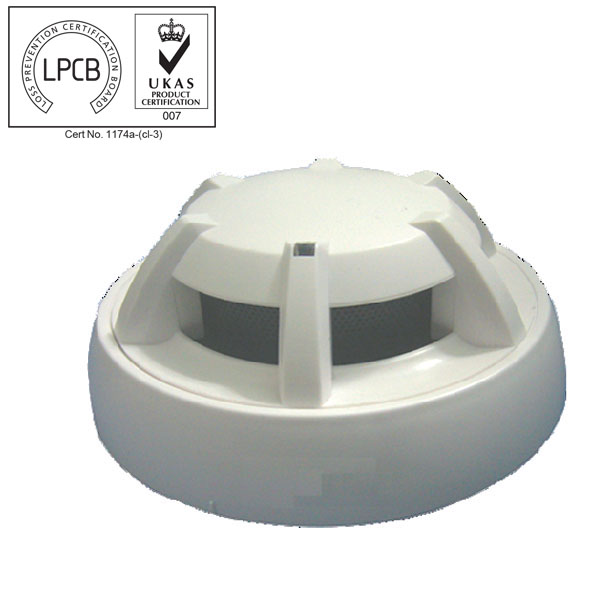

Smoke Detector
SPECIFICATIONS
MODEL |
B61-1001 |
Standard |
EN 54-7 |
Operating Voltage |
9VDC ~ 28VDC |
Quiescent Current |
≤60uA |
Alarm Current |
10mA ≤I ≤ 50mA |
LED indicator |
Red, flashing every 2s ~ 4s when standby; Illuminating when alarm fire |
Remote indicator output |
10kΩ resistor is required |
Power-Up Time |
≤ 10s |
Wiring Method |
Polarized two-wire |
Ingress Protection Rating |
IP32 |
Temperature |
-10⁰C ~+ 55⁰C |
Humidity |
≤95%, non-condensing |
Dimension |
Diameter: 100mm, Height: 43mm (w/out base) |
Weight |
About 120g |

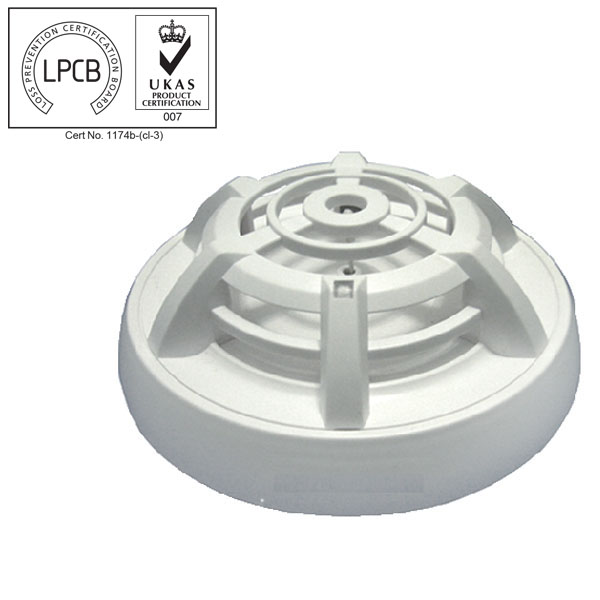

Heat Detector
SPECIFICATIONS
MODEL |
B61-2001 |
Standard |
EN 54-5 |
Operating Voltage |
9VDC ~ 28VDC |
Quiescent Current |
≤60uA |
Alarm Current |
10mA ≤I ≤ 50mA |
LED indicator |
Red, flashing every 2s ~ 4s when standby; Illuminating when alarm fire |
Remote indicator output |
10kΩ resistor is required |
Power-Up Time |
≤ 10s |
Class |
A1R |
Wiring Method |
Polarized two-wire |
Ingress Protection Rating |
IP32 |
Temperature |
-10⁰C ~+ 55⁰C |
Humidity |
≤95%, non-condensing |
Dimension |
Diameter: 100mm, Height: 43mm (w/out base) |
Weight |
About 120g |

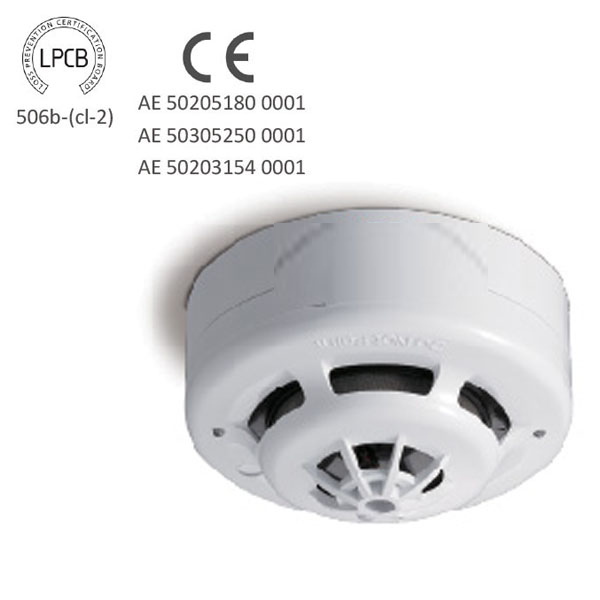

Multi-sensor
SPECIFICATIONS
MODEL |
BF-SH-0115-2 |
BF-SH-0115-3 |
BF-SH-0115-4 |
Wiring Configuration |
2-Wire |
3-Wire with Remote Indicator Output |
4-Wire with Relay Output |
Standard |
EN 54-5 / EN 54-7 |
Voltage Range |
12-30VDC |
Standby Current |
55µA |
Alarm Current @ 24VDC |
40mA |
30mA |
40mA |
Thermal Setting |
58ºC |
Response Grade |
Comply to EN54, Grade 1 |
Ambient Temperature |
-10ºC to 55ºC |
Material |
Fire-Proof Plastic |
Dimensions |
102mm(Dia)x58mm(H) |
Weight |
155g |
157g |
165g |
Color |
White |

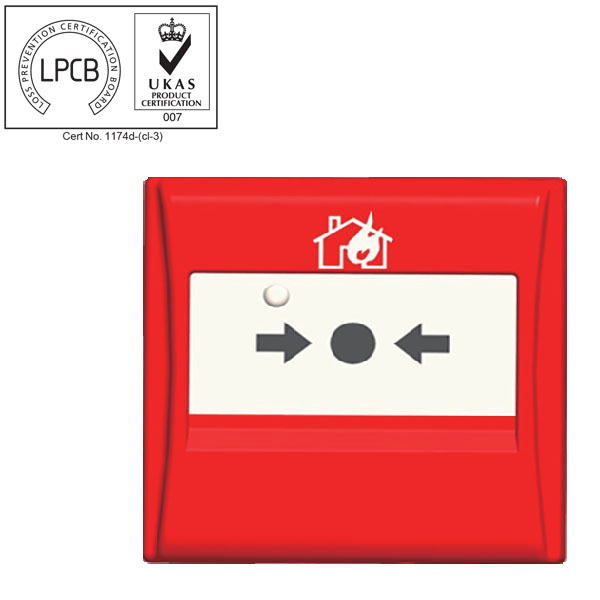

Manual Call Point
SPECIFICATIONS
MODEL |
B61-5101 |
Standard |
EN 54-11 |
Operating Voltage |
12VDC ~ 28VDC |
Standby Current |
≤0.5mA |
Alarm Current |
≤20mA (equivalent resistance is 470 / 1W) |
LED indicator |
Red, Illuminating when alarm fire |
Wiring |
Two-wire |
Class |
Type A, indoor use |
Ingress Protection Rating |
IP43 |
Temperature |
-10⁰C ~ + 55⁰C |
Humidity |
≤95%, non-condensing |
Dimensions |
(LxWxH): 88mm x 88mm x 58mm (w/ back box) (LxWxH): 88mm x 88mm x 23mm (w/out back box) |
Weight |
About 160g (w/ back box) About 107g (w/out back box) |

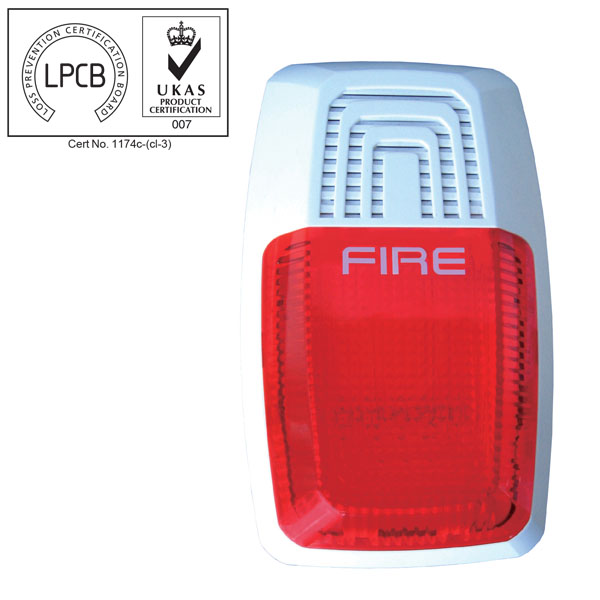

Sounder Strobe
SPECIFICATIONS
MODEL |
B61-6301 |
Standard |
EN 54-3 |
Operating Voltage |
20VDC ~ 28VDC |
Alarm Current |
≤35mA |
Flashing Frequency |
1.4 x (1± 20%) Hz |
Ingress Protection Rating |
IP21C |
Temperature |
-10⁰C ~ + 50⁰C |
Humidity |
≤95%, non-condensing |
Dimensions |
(LxWxH): 152mm x 91mm x 49.5mm |
Weight |
About 210g |

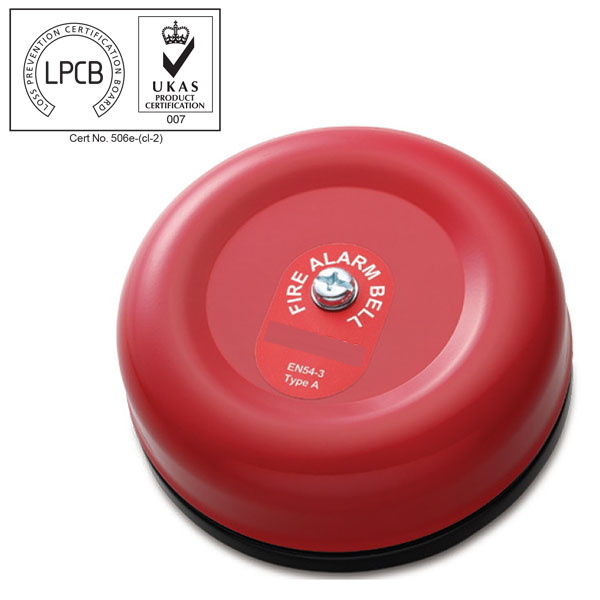

Alarm Bell
SPECIFICATIONS
MODEL Series |
BF-AB-0418 |
Standard |
BS EN 54-3 |
Voltage |
24VDC |
Current |
25mA |
Sound Output |
93dB @ 1m |
Movement |
Motor, Pinion and Striker |
Movement Feature |
DC Motor, Acetral Gear Wheel, Steel Striker |
Material |
Steel Plate |
Base Plate |
Molded Black Polycarbonate |
Dimensions |
Ø6" (152mm) x 58mm (H) |
Weight |
≈850g |
