FIRE EXTINGUISHER \ Carbon Dioxide
Portable
Description
Carbon dioxide fire extinguishers are designed to protect areas where Class B and electrical fires occur. CO2 extinguishers are used indoors where winds and drafts do not affect discharge and where clean agent is required.
Features
- Easy grip control valve
- Seamless, corrosion-resistant body
SPECIFICATIONS
| MODEL | CD2 | CD5 | CD2A | CD5A |
| Cylinder Material | Steel Alloy | Aluminum Alloy | ||
| Fire Class | B & Electrical | |||
| Extinguishing Agent | CO2 | |||
| Capacity | 2kg | 5kg | 2kg | 5kg |
| Fire Rating (BS EN 3-7:2004+A1:2007) | 34B | 89B | 34B | 89B |
| Discharge Duration | 10s | 15s | 10s | 15s |
| Operating Temperature Range | -20ºC to 60ºC | |||
| Working Pressure | 60bar | |||
| Test Pressure | 250bar | |||
| Total Height | 580mm | 760mm | 560mm | 675mm |
| Cylinder Diameter | 105mm | 138mm | 111mm | 159mm |
| Body Color | RAL 3000 (Flame Red) | |||

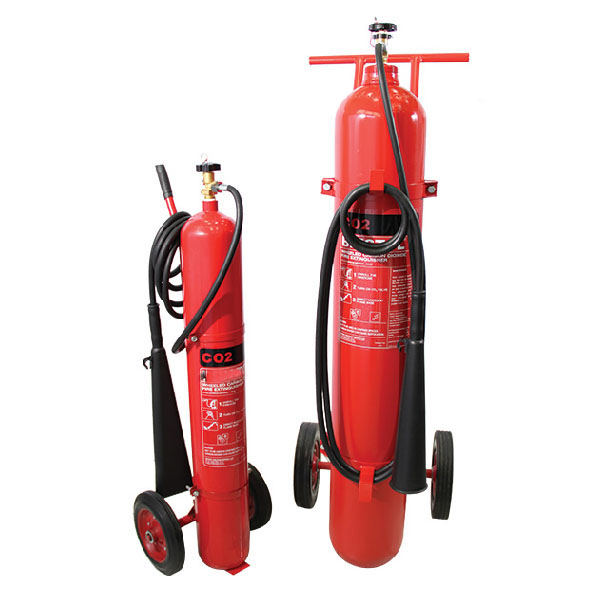

Mobile
SPECIFICATIONS
| MODEL | CD10 | CD20 | CD25 | CD30 | CD45 | CD50 |
| Fire Class | B & Electrical | |||||
| Extinguishing Agent | CO2 | |||||
| Capacity | 10kg | 20kg | 25kg | 30kg | 45kg | 50kg |
| Operating Temperature Range | -20ºC to 60ºC | |||||
| Working Pressure | 60bar | |||||
| Test Pressure | 250bar | |||||
| Hose Length | ≥ 5m | |||||
| Body Color | RAL 3000 (Flame Red) | |||||
