FIRE EXTINGUISHER \ Dry Chemical Powder
Portable
Description
Dry Chemical Powder Fire Extinguishers are the most widely used type of fire extinguisher. They discharge a fine powder that absorbs fuel molecules, depriving the fire of a fuel source.
Features
- Easy grip control valve
- Seamless, corrosion-resistant body
- Refillable and parts are replaceable
- Comes with heavy-duty bracket
SPECIFICATIONS
| MODEL | DP1 | DP2 | DP4 | DP6 | DP9 | DP12 |
| Fire Class | ABC & Electrical | |||||
| Extinguishing Agent | 40% MAP - ABC Dry Chemical Powder | |||||
| Propellant | Nitrogen | |||||
| Capacity | 1kg | 2kg | 4kg | 6kg | 9kg | 12kg |
| Fire Rating (BS EN 3-7:2004+A1:2007) | 5A&34B | 13A&70B | 21A&113B | 27A&183B | 34A&233B | 43A&233B |
| Discharge Duration | 6s | 9s | 12s | 15s | 18s | 23s |
| Operating Temperature Range | -20ºC to 60ºC | |||||
| Working Pressure | 15bar | |||||
| Test Pressure | 27bar | |||||
| Total Height | 300mm | 340mm | 470mm | 520mm | 560mm | 610mm |
| Cylinder Diameter | 86mm | 120mm | 140mm | 161mm | 190mm | 190mm |
| Cylinder Material | Steel | |||||
| Body Color | RAL 3000 (Flame Red) | |||||

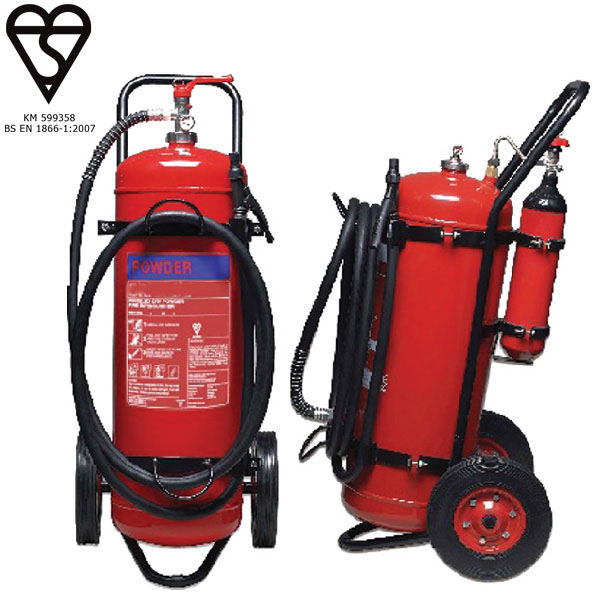

Mobile
SPECIFICATIONS
| MODEL | BFE25P | BFE50P | BFE50P2 | BFE50C | BFE50C2 |
| Fire Class | ABC & Electrical | ||||
| Extinguishing Agent | 40% MAP | 85% MAP | 40% MAP | 85% MAP | |
| Propellant | Stored Pressure - Nitrogen | Cartridge - CO2 | |||
| Capacity | 25kg | 50kg | 50kg | 50kg | 50kg |
| Fire Rating (BS EN 1866-1:2007) | A & IIB | A & IIIB | A & IVB | A & IIIB | A & IVB |
| Discharge Duration | 6s | 9s | 12s | 18s | 23s |
| Operating Temperature Range | -30ºC to 60ºC | ||||
| Working Pressure | 15bar | ||||
| Test Pressure | 27bar | ||||
| Hose Length | ≥ 5m | ||||
| Total Height | 870mm | 1180mm | 1180mm | 1180mm | 1180mm |
| Width | 500mm | 500mm | 500mm | 500mm | 500mm |
| Depth | 600mm | 600mm | 600mm | 650mm | 650mm |
| Cylinder Material | Steel | ||||
| Body Color | RAL 3000 (Flame Red) | ||||

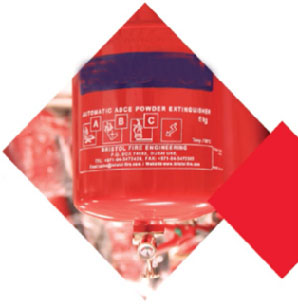

Fixed/Automatic
SPECIFICATIONS
| MODEL | DP4.5A | DP6A | DP9A | DP12A | DP25A |
| Fire Class | ABC & Electrical | ||||
| Extinguishing Agent | 40% MAP - ABC Dry Chemical Powder | ||||
| Propellant | Stored Pressure - Nitrogen | ||||
| Capacity | 4.5kg | 6kg | 9kg | 12kg | 25kg |
| Working Pressure | 15bar | ||||
| Test Pressure | 27bar | ||||
| Sprinkler Bulb | Standard Response 155°F/68°C | ||||
| Recommended Coverage Area | 10-20sqm | ||||
| Mounting | Ceiling Mounted - Steel Bracket | ||||
| Cylinder Material | Steel | ||||
| Body Color | RAL 3000 (Flame Red) | ||||
