FIRE PROTECTION SYSTEM \ FOAM SYSTEM
Bladder Tank & Proportioner
SPECIFICATIONS
| RATIO FLOW CONTROLLER | |||||
| MODEL | BBT-RFC2 | BBT-RFC3 | BBT-RFC4 | BBT-RFC6 | BBT-RFC8 |
| Nominal Diameter | DN50 | DN80 | DN100 | DN150 | DN200 |
| Foam Concentrate Inlet Diameter | DN25 | DN40 | DN40 | DN50 | DN65 |
| Nominal Flow Range (L/min) | 75-1000 | 200-3200 | 400-6200 | 1000-11500 | 3000-20000 |
| Length | 1000mm | ||||
| Connection Type | Flanged ANSI B 16.5, 150#, RF | ||||
| Proportioning Ratio | 3% | ||||
| Max. Working Pressure | 12bar (175psi) | ||||
| Hydrostatic Test Pressure | 18bar (263psi) | ||||
| Body Material | Carbon Steel Exterior / Stainless Steel Internal | ||||
| Valve Material | Stainless Steel | ||||
| Approval | UL Listed with AFFF 3% and AR-AFFF 3x3% | ||||
| BLADDER TANK | |||||
| Complete with Pre-piping/Trim to Bladder Tank | |||||
| Capacity (L) | 200-15000 | 2500-15000 | |||
| Orientation | Vertical / Horizontal | ||||
| Design Code | ASME Sec.VIII Div.I Latest Edition | ||||
| Max. Working Pressure | 12bar (175psi) | ||||
| Hydrostatic Test Pressure | 18bar (263psi) | ||||
| Bladder Material | Nylon Reinforced Nitrile Rubber (BUNA-N) | ||||
| Spool Piece Material | Carbon Steel | ||||
| Foam Piping Material | Stainless Steel | ||||
| Water Piping Material | Carbon Steel | ||||
| Relief Valve Material | Copper Alloy / Stainless Steel | ||||
| Tank Material | Carbon Steel | ||||
| Internal Finishing | Coal Tar Epoxy | ||||
| External Finishing | Painted Epoxy Flame Red (RAL 3000) | ||||

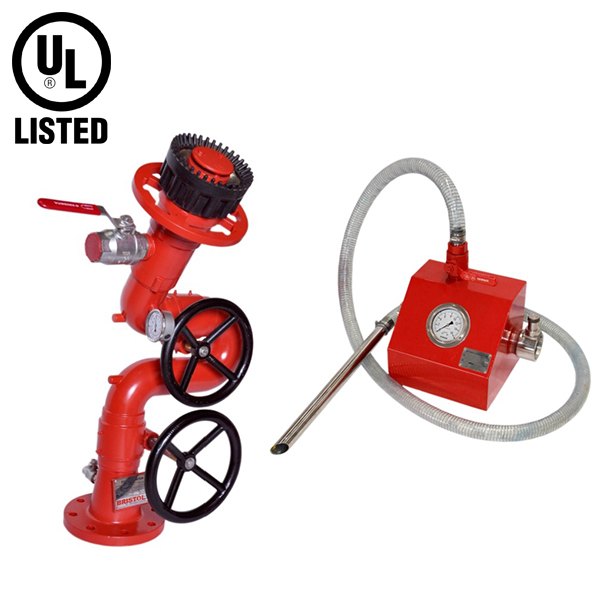

Water/Foam Monitor
SPECIFICATIONS
| MODEL | Inlet Flange | Barrel | Flow Rate | Induction Mechanism | Horizontal Throw @ 30° Still Air | |
| Water | Foam-Water | |||||
| FFM-SI-500-4 | 4" | 3" | 500gpm | Self-Inducting | 50m | 45m |
| FFM-SI-750-4-5055 | 4" | 3" | 750gpm | Self-Inducting | 60m | 55m |
| FFM-SI-750-4-6055 * | 4" | 3" | 750gpm | Self-Inducting | 60m | 55m |
| FFM-SI-1000-4 | 4" | 4" | 1000gpm | Self-Inducting | 70m | 65m |
| FFM-JRCP-1000-4 | 4" | 4" | 1000gpm | JRCP | 70m | 65m |
| VFM-SI-500/750-4 | 4" | 4" | 500/750gpm | Self-Inducting | 50/60m | 45/55m |
| VFM-JRCP-500/750-4 | 4" | 4" | 500/750gpm | JRCP | 50/60m | 45/55m |
| VFM-SI-500/750/1000-4 | 4" | 4" | 500/750/1000gpm | Self-Inducting | 50/60/70m | 45/55/65m |
| VFM-JRCP-500/750/1000-4 | 4" | 4" | 500/750/1000gpm | JRCP | 50/60/70m | 45/55/65m |
| VFM-SI-1000/1500/2000-6 | 6" | 6" | 1000/1500/2000gpm | Self-Inducting | 70/75/80m | 65/70/75m |
| VFM-JRCP-1000/1500/2000-6 | 6" | 6" | 1000/1500/2000gpm | JRCP | 70/75/80m | 65/70/75m |
| *Lever Type Actuator | ||||||

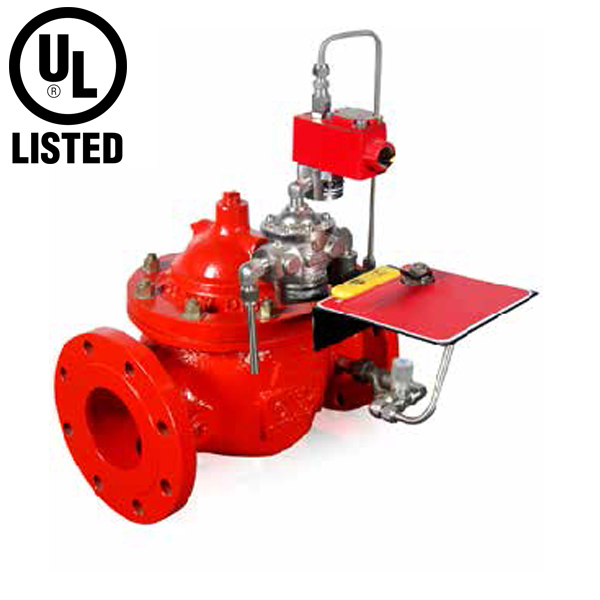

Deluge Valve
SPECIFICATIONS
| MODEL Series | XT-4080S | XT-4080P |
| Actuation Trim | Solenoid & Pneumatic | Pneumatic |
| Standard | ANSI/UL 260 | |
| Sizes | 4" / 6" / 8" | |
| Inlet Connection | Flanged Class 150 ANSI B16.5 | |
| Max. Working Pressure | 175psi / 12bar | |
| Test Pressure | 350psi / 24bar | |
| Main Valve Body & Cover Materials | Cast Steel ASTM A216 Gr. WCB Naval Bronze: ASTM B61 Nickel Al-Bronze: ASTM B148/BS1400 Gr. AB2 Stainless Steel: ASTM A351 Gr. CF8/CF8M |
|
| Valve Seat Material | Stainless Steel Gr. 316 | |
| All Other Internal Parts Material | Stainless Steel Gr. 304 | Stem Material | Stainless Steel Gr. 316 Monel for Seawater |
| Trim Material | Stainless Steel | |
| Standard Finish | RAL 3000 (Flame Red) | |
| SOLENOID VALVE | ||
| Type | 3/2 way - Normally Open, Energize to open Deluge Valve 3/2 way - Normally Close, De-energize to open Deluge Valve |
|
| Body Material | Brass ASTM B283, Stainless Steel | |
| Enclosure Options | Weather proof to NEMA type 1, 2, 3, 4, 5. NEMA type 6, 7, 8 - Watertight IP65 Explosion Proof PESO/CMRI certi ed for Gr.IIA/IIB (sold at an extra cost) |
|
| Coil | Class F | |
| PNEUMATIC PILOT VALVE | ||
| Body & Trim Material | Complete Stainless Steel | |
| Max. Pressure | 375psig (26barg) | |
| Fluid | Air / Water / Light Oil | |
| Elastomers | Buna-N Nylon Reinforced | |
