FIRE PROTECTION SYSTEM \ SPRINKLER SYSTEM

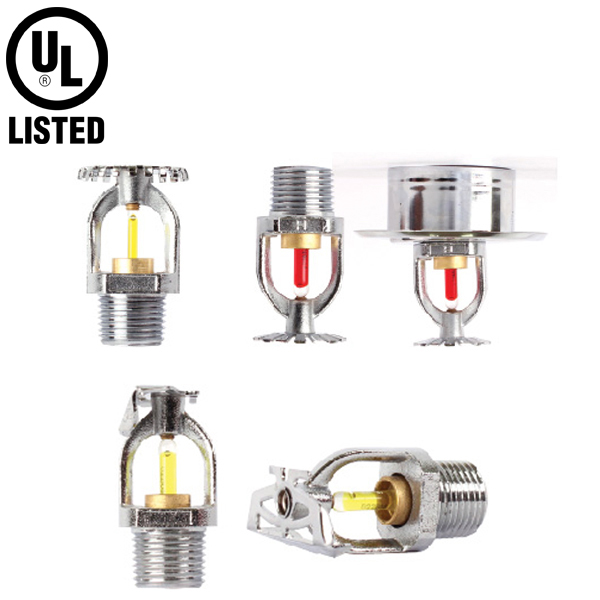

Sprinkler Heads
| MODEL |
BF001 |
BF005 |
BF002 |
BF004 |
BF007 |
BF008 |
| Mounting |
Upright |
Pendent |
H. Sidewall |
| Quartzoid Bulb Response |
Standard |
Quick |
Standard |
Quick |
Standard |
Quick |
| Orifice Diameter |
13mm |
| Inlet Connection Type |
1/2" NPT |
| K Factor |
5.6 (Imp) / 80 (Metric) |
| Temperature Rating Options |
57°C , 68°C , 79°C, 93°C |
| Max. Working Pressure |
175psig / 1.2MPa (12bar) |
| Min. Working Pressure |
7psig / 0.048MPa (0.48bar) |
| Factory Hydrostatic Test |
500psig (3.4bar) |
| Body Finishing |
Chrome Plated |

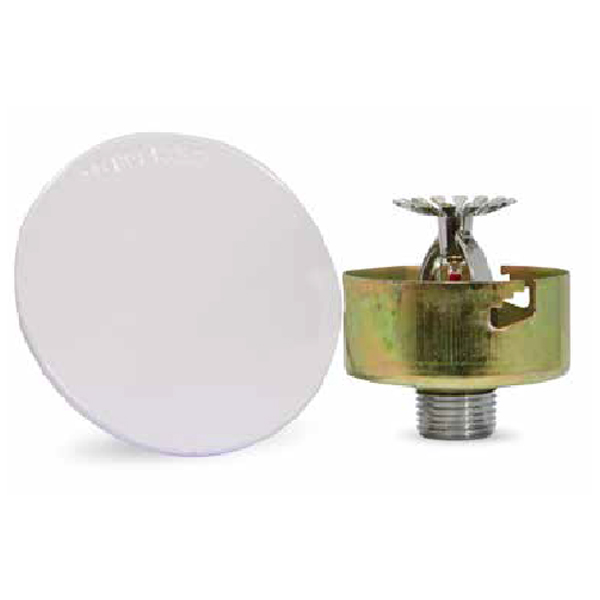

| MODEL |
BF003 |
BF006 |
| Mounting |
Concealed Pendent |
| Extinguishing Agent |
Standard |
Quick |
| Orifice Diameter |
13mm |
| Inlet Connection Type |
1/2" NPT |
| K Factor |
5.6 (Imp) / 80 (Metric) |
| Max. Working Pressure |
175psig / 1.2MPa (12bar) |
| Min. Working Pressure |
7psig / 0.048MPa (0.48bar) |
| Factory Hydrostatic Test |
500psig (3.4bar) |
| Body Finishing |
Chrome Plated |
| Cover Plate Temperature |
135°F / 57°C |
| Cover Plate Finishing |
White RAL 9010 |

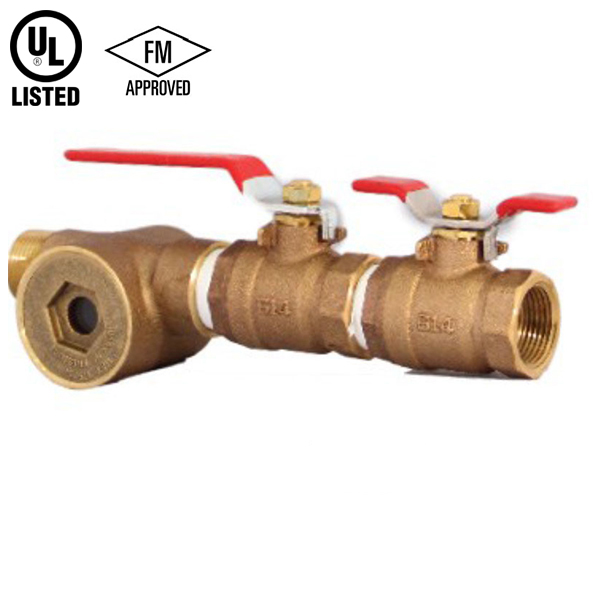

Test & Drain Valve
SPECIFICATIONS
| MODEL |
BF-VT001 |
| Standard |
UL Subject 258 |
| Connection Type |
1" M x F NPT |
| Body Material |
Brass |
| Working Pressure |
175psig / 12bar |
| K Factor |
5.6 |
Alarm Valve
SPECIFICATIONS
| MODEL Series |
BAV-146 |
| Standard |
ANSI/UL 193 |
| Sizes |
4" / DN100 |
6" / DN150 |
| Inlet Connection |
Flanged Class 150 ANSI B16.1 |
| Max. Working Pressure |
175psi / 12bar |
| Test Pressure |
350psi / 24bar |
| Body Material |
Ductile Iron |
| Accessories |
Retard Chamber, Water Motor Alarm, Alarm Pressure Switch |
| Standard Finish |
RAL 3000 (Flame Red) |
