Description

GSFP Aboveground are primarily designed for safe storage of flammable and combustible liquids. These tanks are designed, fabricated, tested and labeled in accordance with Underwriters Laboratories, Inc. UL-142 (Steel Aboveground Tanks for Flammable and Combustible Liquids) standard. Tanks are designed and engineered to meet the demanding needs of many industries.

We have experienced team that offers quality engineering and support to help you customize your tank to your specific application. Our tanks are produced according to the highest standards for the commercial, industrial, public and private sectors.

Features

- UL-142 Label
- Standard Capacity: 25 - 360 Gallons
- Thickness of 10mm MS Steel
- Flat flanged heads in single wall configurations
- Connections for normal and emergency venting, gauging, filling and product piping
- Lifting lugs
- Structural legs for easy installation
- Primer paint, Red spray paint finished

Capacity

Model CAP
BFE25 25 Gallon
BFE70 70 Gallon
BFE70 70 Gallon
BFE120 120 Gallon
BFE180 180 Gallon
BFE280 280 Gallon
BFE360 360 Gallon
More Details

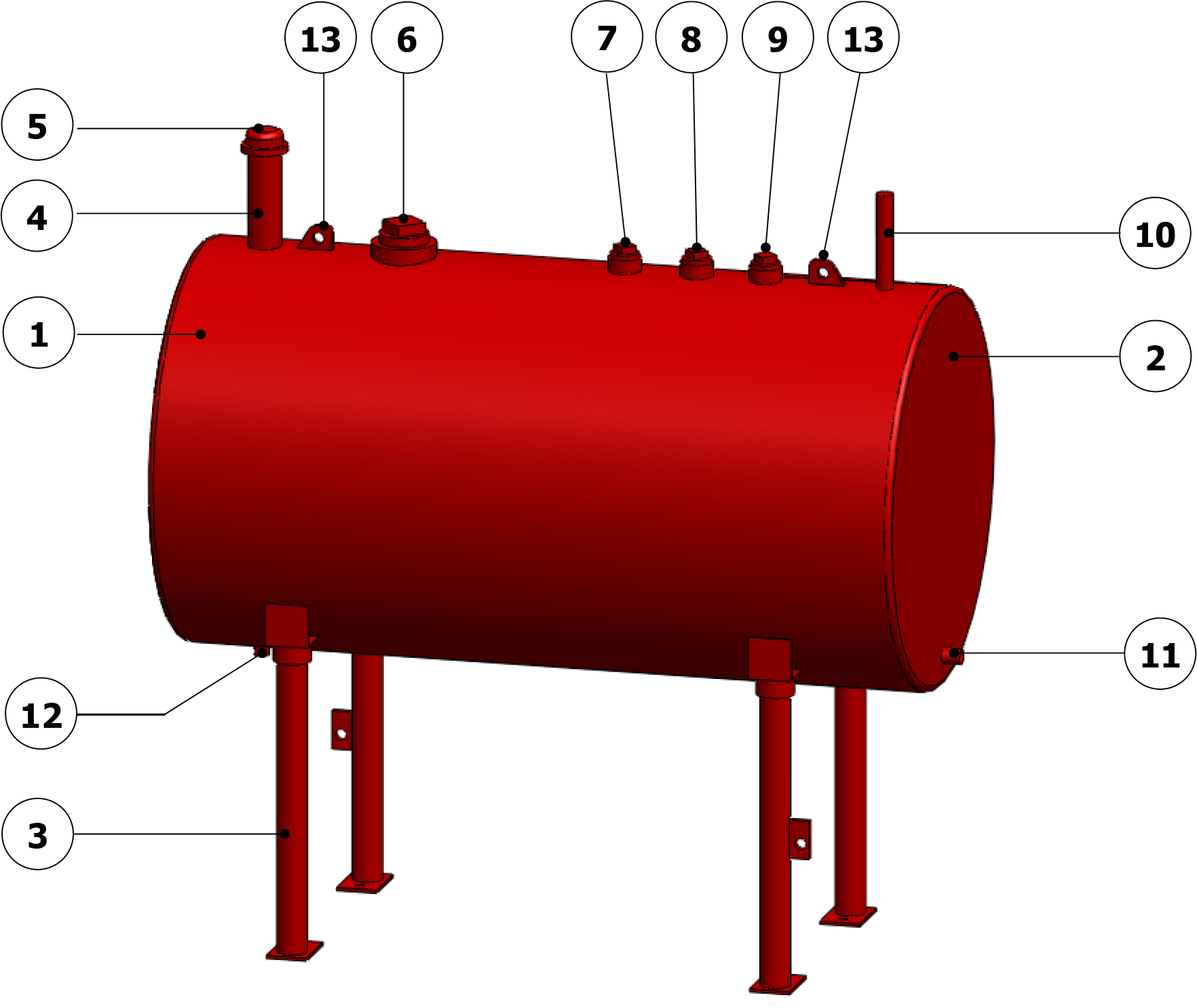

Description

  1. Tank Shell
  2. End Cap (Dished Head)
  3. Leg Assembly
  4. Filler Neck
  5. Fill Cap with Provisions for Pad-Lock with Removable Strainer (1/16" Mesh)
  6. Emergency Vent
  7. Normal Vent (2")
  8. Fuel Level Indicator Gauge Connection (2")
  9. NPT Connection for Fuel Switch
  10. Return Connection (1")
  11. Discharge Connection (1 1/4")
  12. Drain Connection
pump

Model Tank Capacity Dimension in Inches Approx Weight
Length Width Height
BFE25 25 32.71 16 39.3 57
BFE70 70 46.96 22 44.7 87
BFE120 120 43.27 30 52.7 108
BFE180 180 63.78 30 52.7 137
BFE280 280 50.87 42 61.6 168
BFE360 360 64.76 42 61.6 195
pump
