Fire Pumps - Horizontal Split Case
pump

Description

GSFP Split Case Pump is a single stage, non-self-priming, centrifugal volute pump with radial suction and discharge port. This pump has a horizontal pump shaft with the impeller placed in the middle of the shaft and with self contained combination bearing housing and seal chamber on both sides of the impeller. Without disturbing the motor or pipe-work, the split case construction enables the pump casing to be dismantled in the horizontal plane along the drive shaft. Removal and dismantling of the internal pump parts e.g. bearings, wear rings, impeller and shaft seal can then take place.

Features

- In line Pump
- Double Suction
- Low NPSH
- Low axial load on the shaft
- Double Volute
- Improved efficiency (Overall higher efficiency)
- Low radial load on the shaft
- Low axial and radial loads extends wear ring, seal and bearing life, minimize vibration and provides quit operation
- Easy service bearing and packing gland can be changed without removing the top casing half
- UL File No. EX16089

Performance Range

- Capacity : From 300 GPM up to 3000 GPM
- Head : From 50 MTR up to 205 MTR

Materials of Construction

- Shaft : AISI 4340/AISI 4140
- Casing : Ductile Iron
- Impeller : Bronze
- Shaft Seal : Packing Gland Immersion Graphite Rope
More Details

HSC Selection Chart

Model Rated Capacity (GPM) Size (In) UL Listed Pressure (psi) FM Approved Pressure (PSI) Approx Speed (RPM)
BSP-125-270 300 5x3 117-159 2950
BSP-125-270 400 5x3 115 – 157 2950
BSP-150-310 400 6x4 138 – 226 2950
BSP-125-270 450 5x3 114 - 155 2950
BSP-125-270 500 5x3 112 - 154 2950
BSP200-290 500 8x5 165 - 228 3550
BSP-150-310 500 6x4 129 - 222 137 – 225 2950
BSP150-370 500 6x4 261 - 293 2950
BSP150-370 500 6x4 235 - 264 2800
BSP150-370 500 6x4 202 - 226 2600
BSP 6X4X10HF 500 6x4 91-126 2950
BSP 6X4X10HF 500 6x4 130-178 3500
BSP200-290 750 8x5 161 - 229 3550
BSP-150-310 750 6x4 125 - 223 132-225 2950
BSP150-370 750 6x4 254 - 285 2950
BSP150-370 750 6x4 228 - 256 2800
BSP150-370 750 6x4 195 - 219 2600
BSP200-365 750 8x5 214 - 262 2950
BSP200-365 750 8x5 193 - 236 2800
BSP200-365 750 8x5 165 - 203 2600
BSP 6X4X10HF 750 6x4 85-121 2950
BSP 6X4X10HF 750 6x4 123-174 3500
BSP200-290 1000 8x5 155 - 222 3550
BSP-150-310 1000 6x4 117 - 218 128-222 2950
BSP-200-290 1000 8x5 155 – 194 140-172 2950
BSP150-370 1000 6x4 245 - 277 2950
BSP150-370 1000 6x4 219 - 248 2800
BSP150-370 1000 6x4 186 - 212 2600
BSP200-365 1000 8x5 210 - 259 2950
BSP200-365 1000 8x5 188 - 233 2800
BSP200-365 1000 8x5 161 - 199 2600
BSP 6X4X10HF 1000 6x4 76-112 2950
BSP 6X4X10HF 1000 6x4 114-166 3500
BSP 10X8X21HF 1000 10x8 87-149 1500
BSP 10X8X21HF 1000 10x8 113-203 1750
BSP 10X8X29MF 1000 10x8 174-222 1750
BSP200-290 1250 8x5 148 - 217 3550
BSP-200-290 1250 8x5 147 – 191 136-169 2950
BSP200-365 1250 8x5 205 - 254 2950
BSP200-365 1250 8x5 183 - 227 2800
BSP200-365 1250 8x5 156 - 194 2600
BSP 10X8X21HF 1250 10x8 86-149 1500
BSP 10X8X21HF 1250 10x8 111-202 1750
BSP 10X8X29MF 1250 10x8 171-218 1750
BSP-200-290 1500 8x5 138 - 184 132-165 2950
BSP200-365 1500 8x5 198 - 248 2950
BSP200-365 1500 8x5 177 - 221 2950
BSP200-365 1500 8x5 150 - 188 2950
BSP 10X8X21HF 1500 10x8 84-148 1500
BSP 10X8X21HF 1500 10x8 110-202 1750
BSP 10X8X29MF 1500 10x8 167-214 1750
BSP 10X8X21HF 2000 10x8 78-144 1500
BSP 10X8X21HF 2000 10x8 105-200 1750
BSP 10X8X29MF 2000 10x8 122-209 1450
BSP 10X8X29MF 2000 10x8 160-207 1750
BSP 10X8X29MF 2500 10x8 114-198 1450
BSP 10X8X29MF 2500 10x8 151-196 1750
BSP 10X8X29MF 3000 10x8 136-188 1450
BSP 10X8X29MF 3000 10x8 140-185 1750

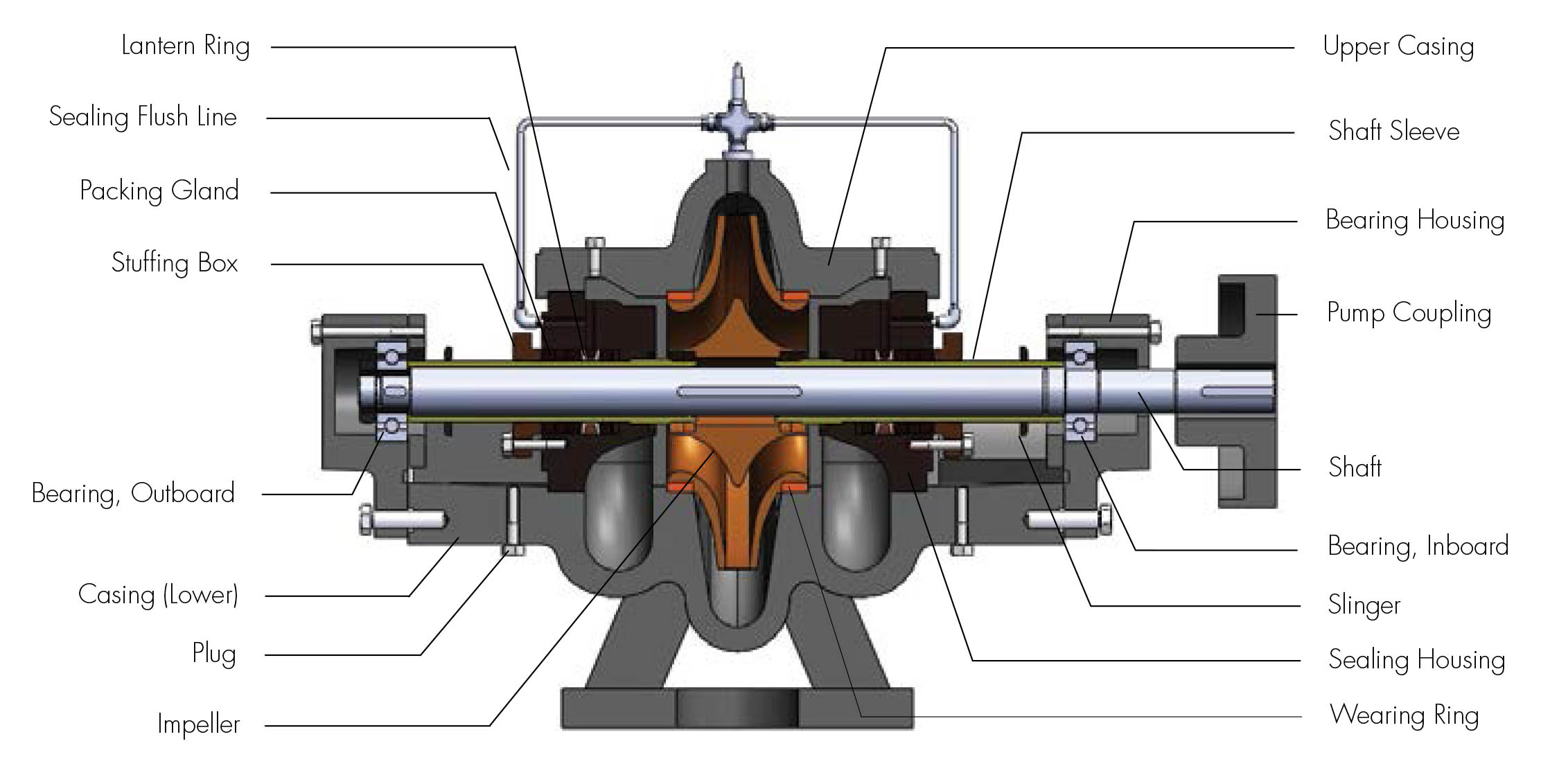

Characteristics

Description

Casing - (Ductile Iron) - Upper and Lower half bolted and dowelled to provide perfect alignment. Upper half casing can be removed for inspection, without disturbing bearings or alignment.

Shaft Sleeve - (Stainless Steel) - Protect the shaft against corrosion and wear, extends through gland for maximum shaft protection.

Impeller - (Bronze) - Enclosed, double suction, Cast in one-piece and balance to minimize the thrust and to ensure longer bearing life. Locked in position by shaft sleeve.

Sealing Housing - (Ductile Iron) - Designed to accept packing with lantern ring. Internally drilled liquid passage in upper-half casing provides lubrication to the packing area.

Shaft - (Steel) - Large - diameter, precision-machined, high strength steel shaft for maximum strength with minimum shaft deflection.

Bearing - (SKF) - High speed capability and low friction bearing.

Wear Ring - (Bronze) - A sacrificial component installed to inhibit fluid from re-circulating back to suction from the discharge.

Lantern Ring - (Stainless Steel) - A perforated hollow ring that receives relatively cool, clean liquid. Distribute uniformly around the shaft to provide lubrication and cooling.

Packing Gland - (Immersion Graphite) - flexibility allows the shaft to run freely as well as leak proof.

Stuffing Box (Gland) - (Bronze) - to press the packing gland into the seal area through bolts.

Plug - (Stainless Steel).

Bearing Housing - (Cast Iron).

Sealing Flush Line - (Stainless Steel) - Line from discharge of the pump and recirculated through the pressure regulating valve into the gland.

Water Slinger - (Oil Resistant Rubber).

Pump Coupling (ASTM No.35).

pump

Split Case - Dimension Table (mm)

MODEL A B C Cs E F G H L M N P Ø j K
BSP-125-270 300 300 315 140 270 70 140 82 410 320 336 443 35 10x10x78
BSP-150-310 330 330 355 170 345 80 200 91.5 470 320 345 345 35 10x10x85
BSP-150-370 370 370 355 170 345 70 200 80 470 320 344 443 35 10x10x78
BSP-200-290 370 370 400 200 310 80 225 110 530 390 366 517 45 14x14x108
BSP-200-365 370 370 400 200 350 80 225 110 530 390 366 517 45 14x14x108
BSP 6X4X10HF 330 330 355 170 270 70 200 110 470 320 300 410 40 10x10x85
BSP 10X8X21HF 600 500 560 300 472 70 350 185 770 480 475 610 70 18x18x149
BSP 10X8X29MF 682 609 600 300 555 100 440 140 980 600 520 710 70 18x18x138

Flange - Dimension Table (mm)

Model Suction Discharge
ID (Pump Casing Range) OD No. of Holes Bolt Hole DI A BCD ID (Pump Casing Range) OD No. of Holes Bolt Hole DI A BCD
BSP 125-270 125 280 8 22 235 80 210 8 22 168
BSP 150-310 150 320 8 22 270 100 255 8 22 200
BSP 150-370 150 320 8 22 270 100 255 8 22 200
BSP 200-290 200 380 12 26 330 125 280 8 22 235
BSP 200-365 200 380 12 26 330 125 280 8 22 235
BSP 6X4X10HF 150 320 12 22 270 100 250 8 22 200
BSP 10X8X21HF 250 445 16 28 387 200 380 12 25 330
BSP 10X8X29MF 250 445 16 28 387 200 380 12 25 330
