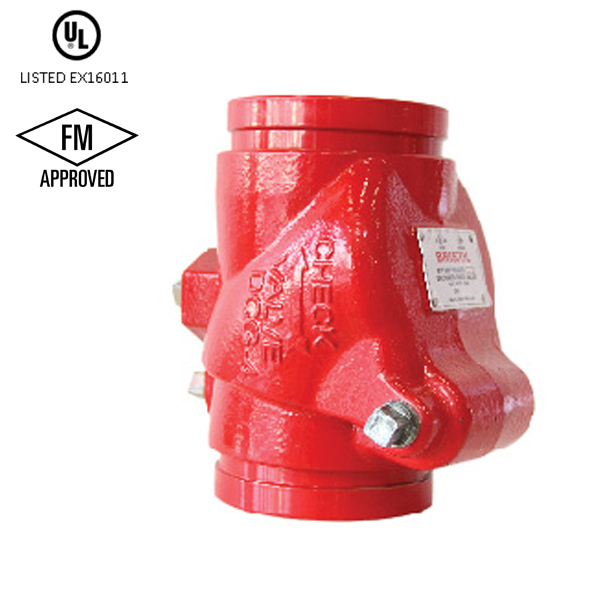

FIRE PROTECTION VALVES / CHECK VALVE
Swing Type
SPECIFICATIONS
| MODEL Series | BR-DGC-300 | |||||||
| Design Standard | ANSI / UL 312 | |||||||
| Working Pressure | 300psi | |||||||
| Type | Swing Type | |||||||
| Connection Type | Grooved AWWA C606 | |||||||
| Finishing | Fusion Bonded Epoxy Coated Interior and Exterior RAL3002 | |||||||
| Body | Ductile Iron ASTM A536 Epoxy Coated | |||||||
| Clapper | Stainless Steel ASTM A167 (2"-5") Ductile Iron ASTM A536 65-45-12 (6"-8") |
|||||||
| Clapper Facing | EPDM Grade E | |||||||
| Seat Ring | Stainless Steel ASTM A213 | |||||||
| Spring | Stainless Steel ASTM A313 | |||||||
| Hinge Pin | Stainless Steel ASTM A580 | |||||||
| Hinge Pin Bushing | Sintered Bronze ASTM B438 | |||||||
| Hinge Pin | Cast Iron ASTM A126 Class A | |||||||
| Drain Plug | Cast Iron ASTM A126 Class A | |||||||
| Size Options | DN50 | DN65 | DN80 | DN100 | DN150 | DN200 | ||

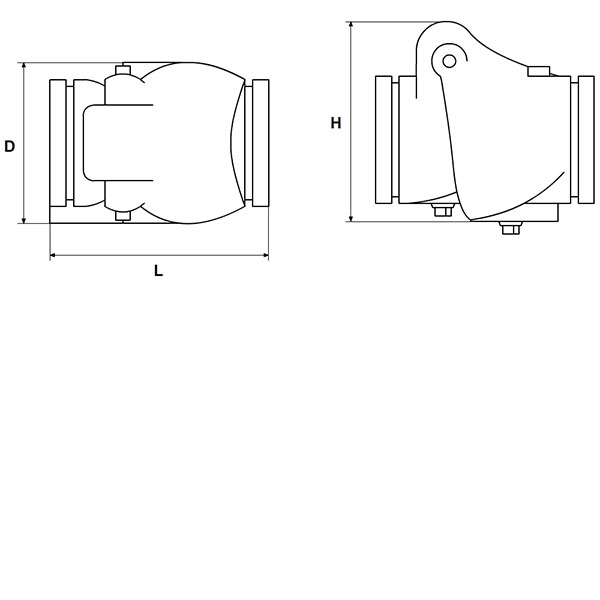

| L (mm) | 171 | 184 | 197 | 205 | 324 | 365 | ||
| H (mm) | 144 | 153 | 160 | 187 | 279 | 331 | ||
| D (mm) | 111 | 114 | 125 | 152 | 216 | 250 | ||
