FIRE PROTECTION VALVES / Y-STRAINER
Y-Strainer
SPECIFICATIONS
MODEL Series |
BFE70FF |
Design Standard |
UL Subject 321 |
Working Pressure |
300psi |
Type |
Basket Type "Y" Strainer |
Connection Type |
Flange EN 1092 PN16 / ANSI B16.1 Class 125 / ANSI B16.5 Class 150 |
Body |
Ductile Iron ASTM A-536 Grade 65-45-12 |
Cover |
Ductile Iron ASTM A-536 Grade 65-45-12 |
Screen |
Stainless Steel AISI 304 |
Gasket |
EPDM |
Plug |
Carbon Steel |
Size Options |
DN50 |
DN65 |
DN80 |
DN100 |
DN125 |
DN150 |
DN200 |
DN250 |
DN300 |
Approximate Head Loss |
7.22psi @ 157.63gpm |
5.89psi @ 224.86gpm |
8.24psi @ 347.53gpm |
5.88 @ 598.54gpm |
7.63psi @ 940.70gpm |
4.82psi @ 1358.85gpm |
5.83psi @ 8405.84gpm |
7.25psi @ 3795.17gpm |
5.73gpm @ 5442.11gpm |

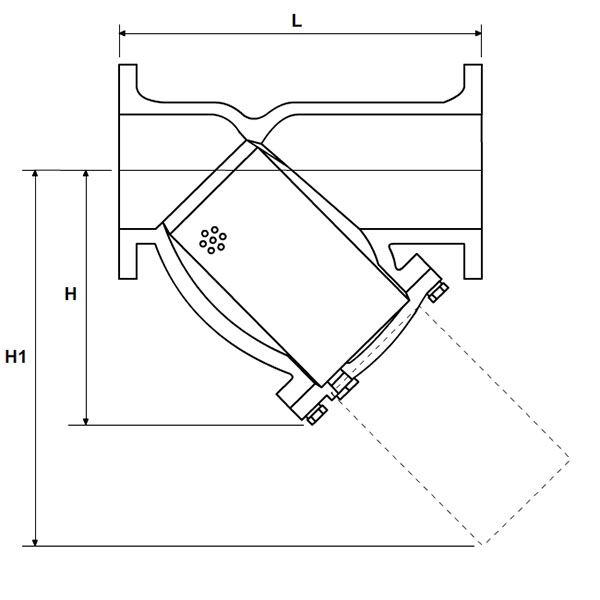

L (mm) |
203 |
254 |
260 |
308 |
398 |
472 |
550 |
654 |
762 |
H (mm) |
132 |
158 |
175 |
202 |
290 |
334 |
391 |
460 |
590 |
H1 (mm) |
195 |
240 |
270 |
320 |
425 |
495 |
570 |
700 |
840 |
Mesh Hole (mm) |
3.4 |
3.4 |
3.4 |
4.9 |
4.9 |
6.0 |
6.6 |
6.6 |
6.6 |
