FIREFIGHTING EQUIPMENT / BREECHING INLET

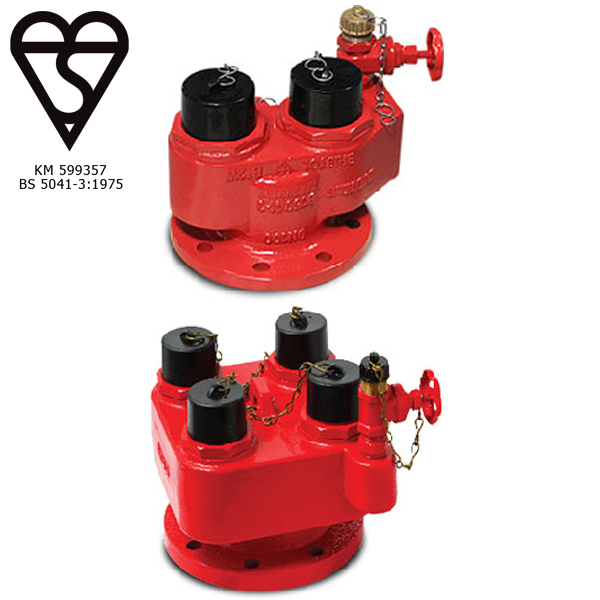

Breeching Inlet
SPECIFICATIONS
| MODEL |
BFE-2WBI |
BFE-4WBI |
| Standard |
BS 5041-3 |
| Inlets |
2-way |
4-way |
| Inlet Coupling Type |
DN65 Male Instantaneous BS336 with Clapper |
| Inlet Material |
LG2 |
| Outlet Size |
DN100 |
DN150 |
| Outlet Coupling Type |
BS4504 Flange PN16 |
| Working Pressure |
10bar |
| Test Pressure |
20bar |
| Working Temperature |
0ºC to 38ºC |
| Body Material |
Cast Iron |
| Body Color |
RAL 3000 (Flame Red) |
| Accessories |
DN25 PN16 Drain Valve |

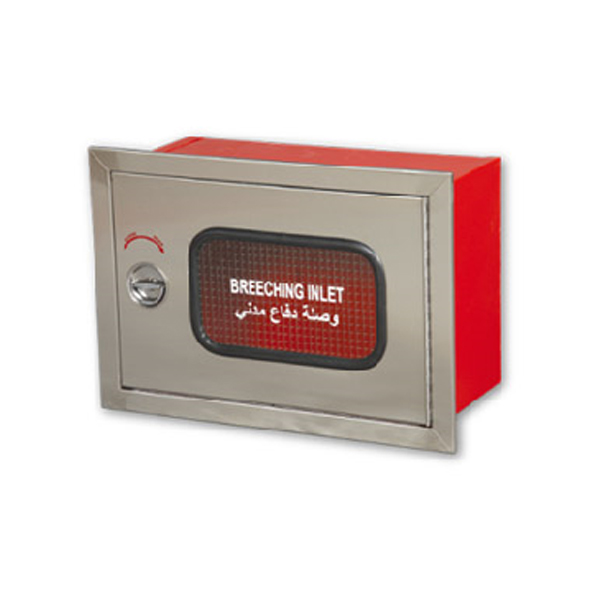

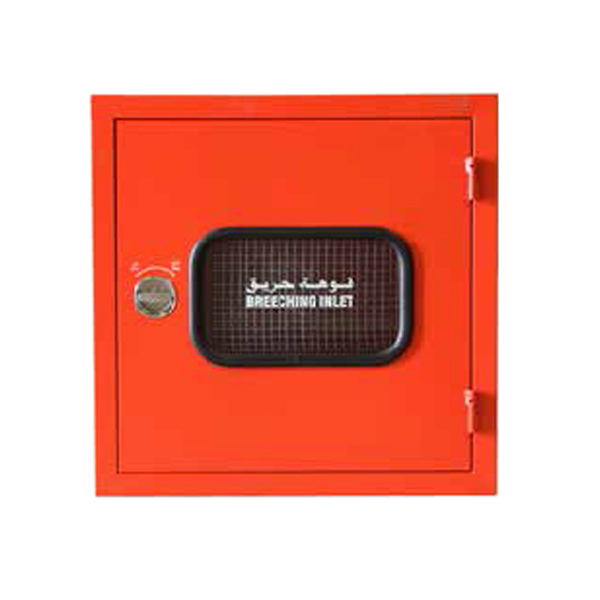

Breeching Inlet Cabinet
| MODEL Series |
BFE-C4WBI |
| Standard Dimension |
H600mm x W600mm x D300mm |
| Front Fascia |
Powder Coated / SS Brush / SS Mirror |
| Back Box |
Powder Coated / SS Brush / SS Mirror |
| Hinge |
Round Bar / SS Piano Hinges |
| Lock |
SS Round Latch Lock |
| MODEL Series |
BFE-C2WBI |
| Standard Dimension |
H600mm x W600mm x D300mm |
| Front Fascia |
Powder Coated / SS Brush / SS Mirror |
| Back Box |
Powder Coated / SS Brush / SS Mirror |
| Hinge |
Round Bar / SS Piano Hinges |
| Lock |
SS Round Latch Lock |

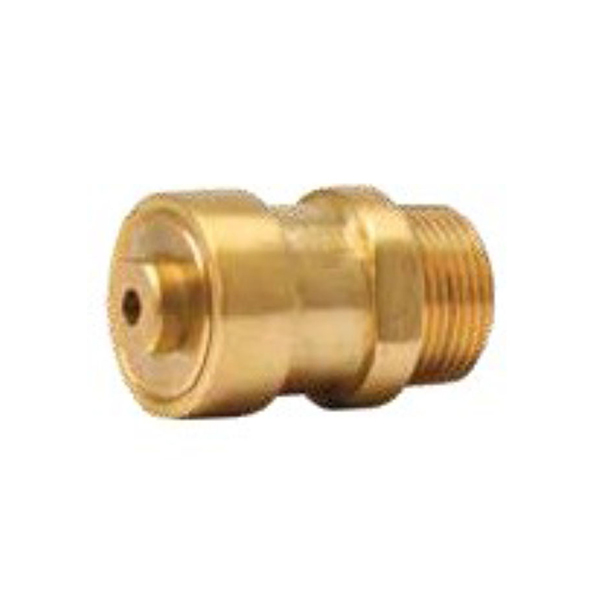

Air Release Valve
| MODEL |
BFE090203 |
| Standard |
BS 5041-3 |
| Test Pressure |
24bar |
| Inlet Coupling Type |
DN25 Male BSPT |
| Body Material |
Brass |
| Body Color |
Cast Brass |
