FIREFIGHTING EQUIPMENT / FIRE HOSE REEL
Semi-rigid Fire Hose Reel
SPECIFICATIONS
| MODEL | BFE-MS-001 | BFE-AS-002 | BFE-MS-003 | BFE-AS-004 |
| Standard | BS EN 671-1 | |||
| Type | Manual | Automatic | Manual | Automatic |
| Hose Inside Diameter | 25mm | 19mm | ||
| Hose Length & Type | 30m - Semi-Rigid, Double Braided Polyester Cord-Reinforced Rubber BS EN 694 | |||
| Assembly Components | Isolation Ball Valve, Connection Hose, Swinging Arm, Reel, Hose, Nozzle | |||
| Working Pressure | 12bar | |||
| Test Pressure | 18bar | |||
| Nozzle Orifice Diameter | 8mm | 6mm | ||
| Flow Rate at 4bar | 56L/m | 34L/m | ||
| Flow Rate at 6bar | 68L/m | 41L/m | ||

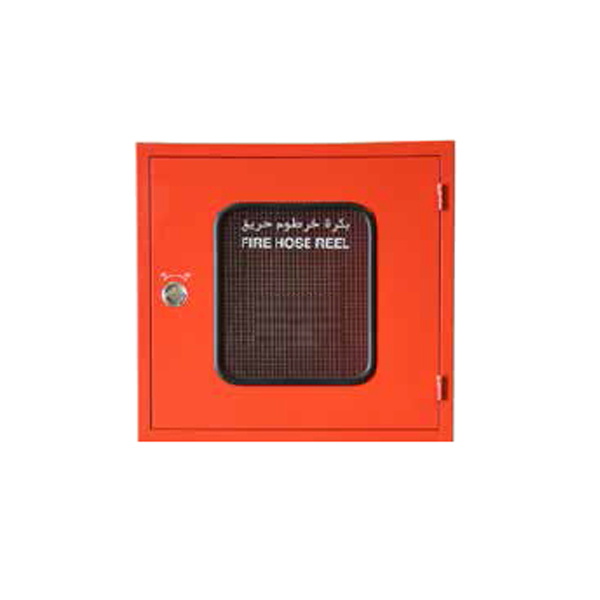

Fire Hose Reel Cabinet
SPECIFICATIONS
| MODEL Series | BFE-CFHR |
| Standard Dimension | H800mm x W800mm x D300mm |
| Front Fascia | Powder Coated / SS Brush / SS Mirror |
| Back Box | Powder Coated / SS Brush / SS Mirror |
| Hinge | Round Bar / SS Piano Hinges |
| Lock | SS Round Latch Lock |

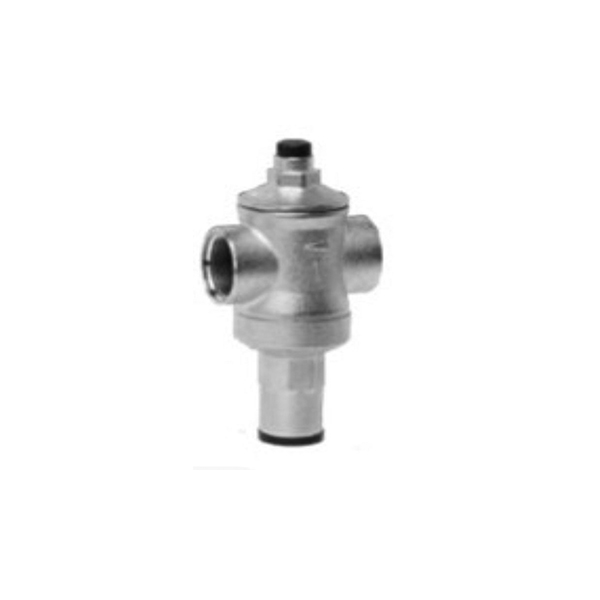

Pressure Reducing Valve
SPECIFICATIONS
| MODEL | BFE06068 |
| Valve Type | Pressure-Reducing (Adjustable 1 to 8bar) |
| Coupling Type | DN25 Female BSPT |
| Max. Working Pressure | 20bar |
| Test Pressure | 30bar |
| Body Material | Brass |
| Body Finish | Chrome Plated |

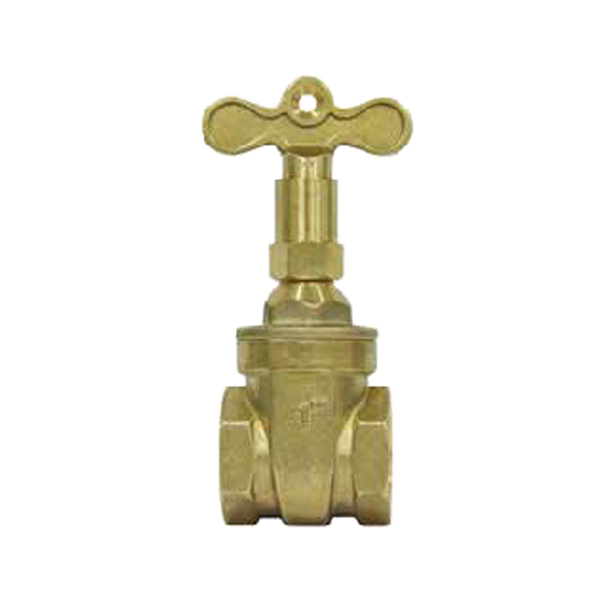

Lock Shield Valve
SPECIFICATIONS
| MODEL | BFE06039 |
| Valve Type | Gate |
| Coupling Type | DN25 Female BSPT |
| Working Pressure | 16bar |
| Test Pressure | 24bar |
| Body Material | Brass |
| Body Finish | Cast Brass |
