Products / Solutions
FIREFIGHTING EQUIPMENT / FIRE HOSE
Lay-Flat Fire Hose
SPECIFICATIONS
| MODEL | BF-SJ-001 | BF-SJ-002 | BF-DJ-003 | BF-DJ-004 |
| Standard | UL 19 | |||
| Hose Diameter | DN40 | DN65 | DN40 | DN65 |
| Hose Jacketing | Polyester Single Jacket | Polyester Double Jacket | ||
| Hose Length & Type | 30m - Rubber Lined | 30m - Rubber Lined | ||
| Service Test Pressure | 14bar | 20bar | ||
| Proof Test Pressure | 26bar | 40bar | ||
| Working Pressure | 13bar | 18bar | ||
| Burst Pressure | 40bar | 60bar | ||

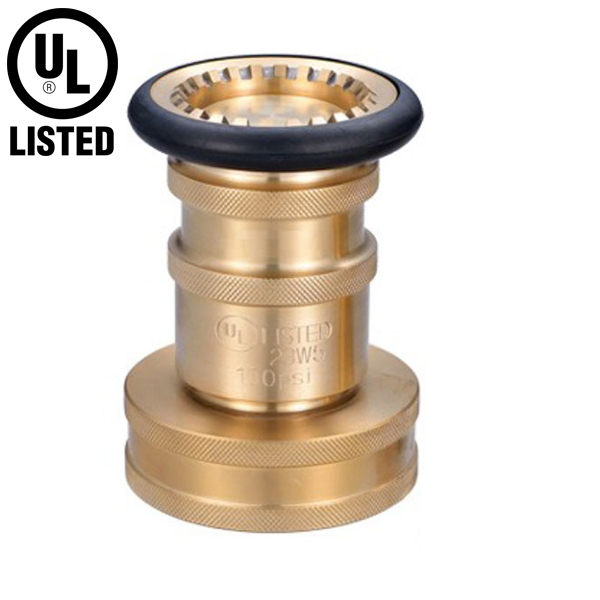

Adjustable Spray Nozzle
SPECIFICATIONS
| MODEL | BF40 | BF65 |
| Standard | ANSI/UL 401 | |
| Inlet Coupling Type | DN40 Female NST | DN65 Female NST |
| Wide Open Flow Rate | 130gal/m @ 100psi | 280gal/m @ 100psi |
| Working Pressure | 20-200psi | |
| Fire Class Application | A & B | |
| Body Material | Brass | |
| Body Finish | Polished Brass | |

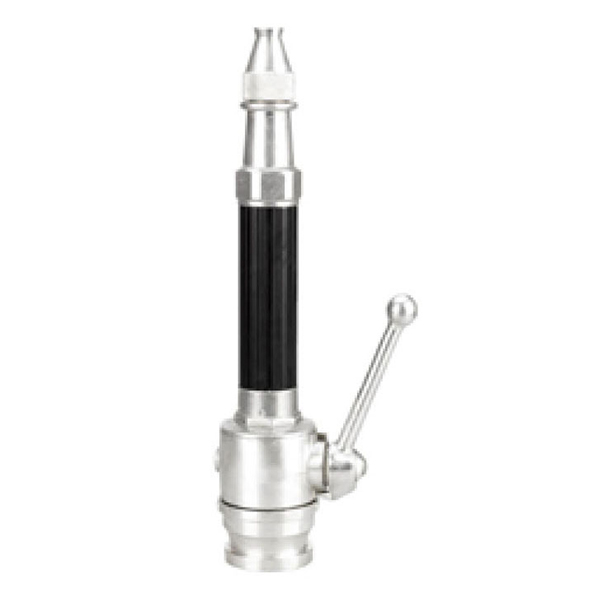

Branch Pipe Nozzle
SPECIFICATIONS
| MODEL | BF-NZ-001 |
| Inlet Coupling Type | DN65 Male Instantaneous BS336 |
| Jet Flow Rate | 250L/m @ 100psi |
| Working Pressure | 20-200psi |
| Fire Class Application | A & B |
| Body Material | Aluminum |
| Body Finish | Plain Aluminum |

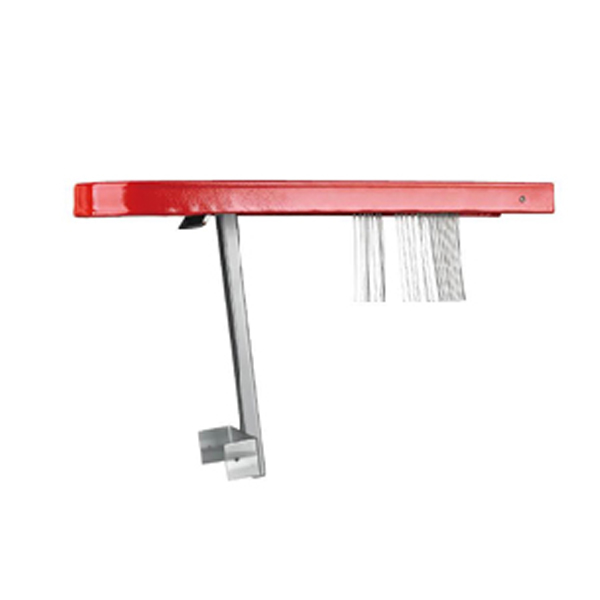

Semi-automatic Pin-rack
SPECIFICATIONS
| MODEL | BF-PR40/500 | BF-PR40/650 | BF-PR65/600 | BF-PR65/675 |
| Assembly Type | Valve-Mounted Semi-Automatic Pin-Rack | |||
| Valve Connector | DN40 Male NPT / NST | DN65 Male NPT / NST | ||
| Hose Connector | DN40 Male NST / Female Instantaneous | DN65 Male NST / Female Instantaneous | ||
| Pin-Rack Length | 500mm | 650mm | 600mm | 675mm |
| 30m Single Jacket Rubber-Lined Fire Hose Minimum Fold Length | 750mm | 500mm | 750mm | 600mm |
| 30m Single Jacket Rubber-Lined Fire Hose Maximum Folds | 20 | 30 | 20 | 25 |
| Body Material | Body Material | |||
| Body Finish | RAL 3000 (Flame Red) | |||

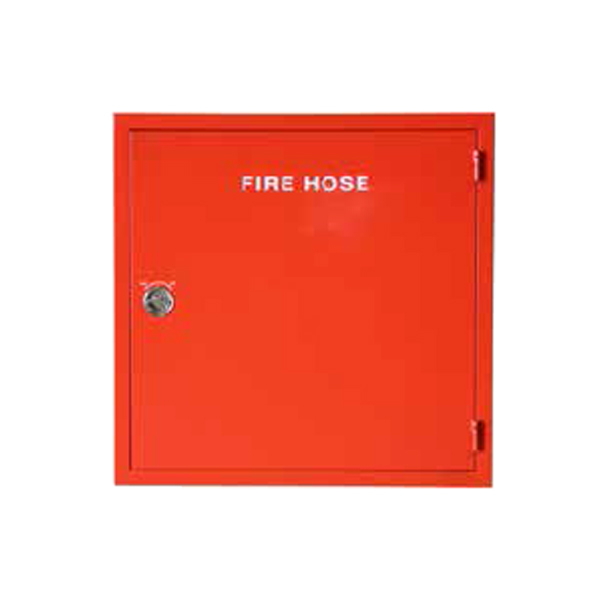

Fire Hose Cabinet
SPECIFICATIONS
| MODEL Series | BFE-CFHS |
| Standard Dimension | H800mm x W800mm x D300mm |
| Front Fascia | Powder Coated / SS Brush / SS Mirror |
| Back Box | Powder Coated / SS Brush / SS Mirror |
| Hinge | Round Bar / SS Piano Hinges |
| Lock | SS Round Latch Lock |
SPECIFICATIONS
| MODEL Series | BFE-CFHD |
| Standard Dimension | H1600mm x W800mm x D300mm |
| Front Fascia | Powder Coated / SS Brush / SS Mirror |
| Back Box | Powder Coated / SS Brush / SS Mirror |
| Hinge | Round Bar / SS Piano Hinges |
| Lock | SS Round Latch Lock |
