FIREFIGHTING EQUIPMENT / LANDING VALVE

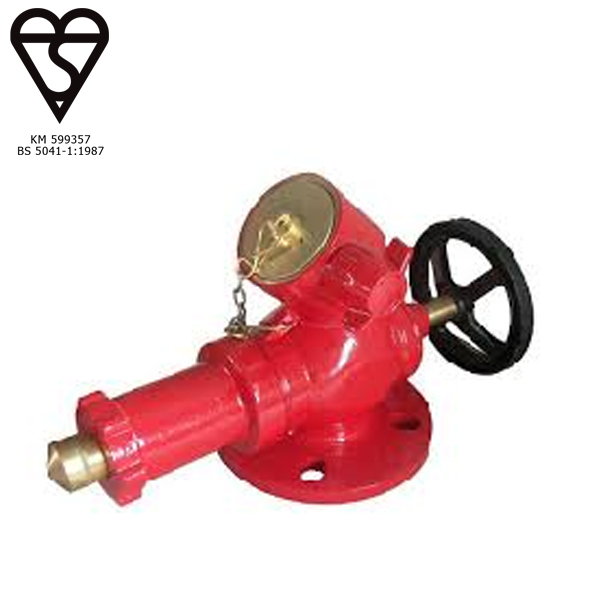

Pressure-reducing "E" Type Landing Valve
SPECIFICATIONS
MODEL |
BFE-2.5LVFP |
Standard |
BS 5041-1 |
Inlet Coupling Type |
DN65 Flange BS4504 PN16 |
Outlet Coupling Type |
DN65 Female Instantaneous BS336 |
Valve Type |
"E" Type - Pressure-Reducing (4-12bar) |
Min. Flow Rate |
8.5L/s @ 4.7bar |
Working Pressure |
20bar |
Seal Test Pressure |
22bar |
Body Strength Pressure |
30bar |
Body Thickness |
4mm |
Working Temperature |
0ºC to 38ºC |
Body Material |
LG2 |
Body Color |
RAL 3000 (Flame Red) |
Accessories |
Leather Strap & Padlock |
Oblique Flanged Landing Valve
MODEL Series |
BFE-2.5LVF |
Standard |
BS 5041-1 |
Inlet Coupling Type |
DN65 Flange BS4504 PN16 |
Outlet Coupling Type |
DN65 Female Instantaneous BS336 |
Valve Type |
Oblique |
Min. Flow Rate |
8.5L/s @ 4.7bar |
Working Pressure |
15bar |
Seal Test Pressure |
16.5bar |
Body Strength Pressure |
22.5bar |
Body Thickness |
3mm |
Working Temperature |
0ºC to 38ºC |
Body Material |
LG2 |
Body Color |
RAL 3000 (Flame Red) |
Accessories |
Leather Strap & Padlock |

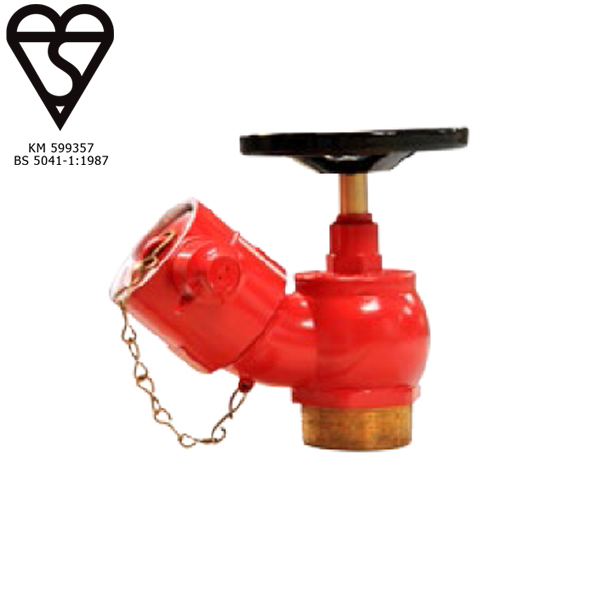

Oblique Threaded Landing Valve
MODEL Series |
BFE-2.5LVT |
Standard |
BS 5041-1 |
Inlet Coupling Type |
DN65 Male BSPT |
Outlet Coupling Type |
DN65 Female Instantaneous BS336 |
Valve Type |
Oblique |
Min. Flow Rate |
8.5L/s @ 4.7bar |
Working Pressure |
15bar |
Seal Test Pressure |
16.5bar |
Body Strength Pressure |
22.5bar |
Body Thickness |
3mm |
Working Temperature |
0ºC to 38ºC |
Body Material |
LG2 |
Body Color |
RAL 3000 (Flame Red) |
Accessories |
Leather Strap & Padlock |

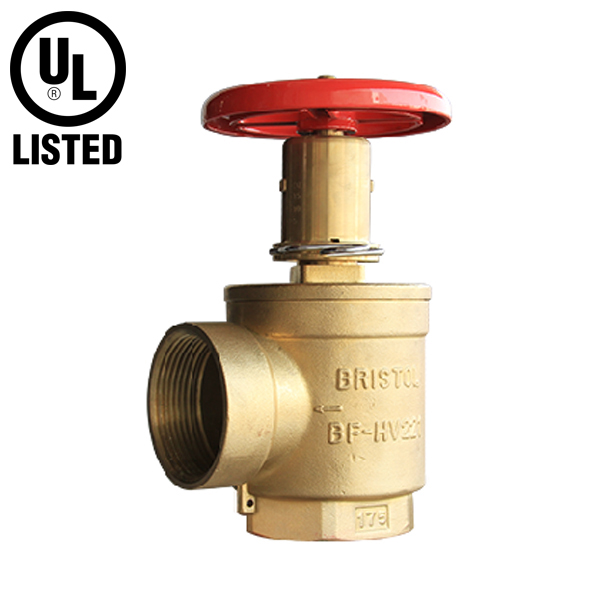

Pressure-restricting Angle Hose Valve
MODEL |
BF-HV121 |
BF-HV221 |
Standard |
ANSI/UL 1468 |
Inlet Coupling Type |
DN40 Female NPT |
DN65 Female NPT |
Outlet Coupling Type |
DN65 Female NPT |
Valve Type |
Angle - Pressure-Restricting (Adjustable 1 to 15) |
Working Pressure |
12bar |
Test Pressure |
24bar |
Working Temperature |
0ºC to 38ºC |
Body Material |
Brass |
Body Color |
Plain Brass |
