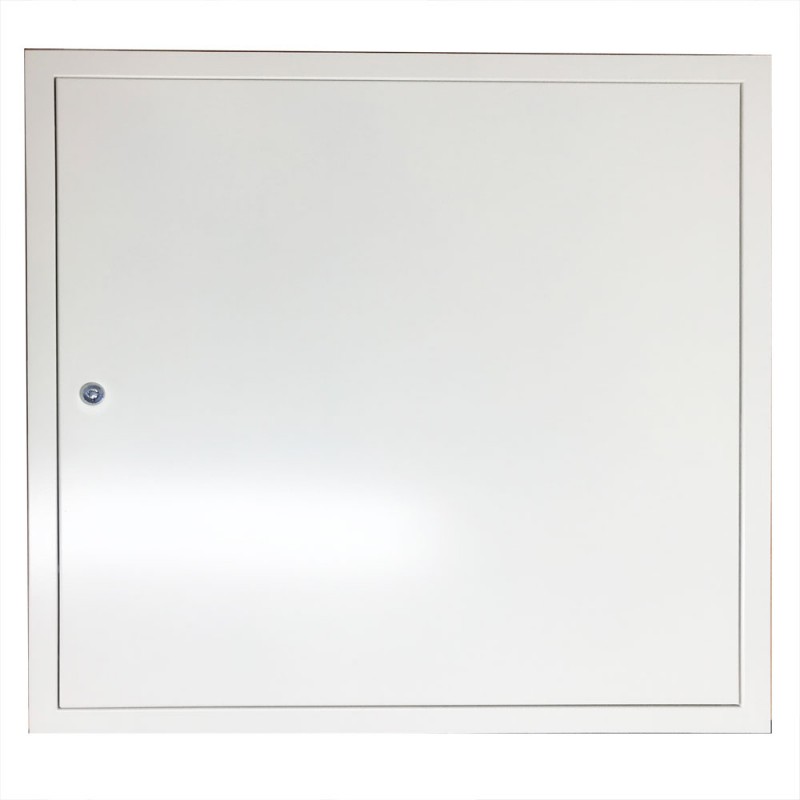

Four side metal doors flush with a wall surface which provides a closure over a valve or other operable device which is recessed into the wall.
The Access Panel frame is intended to be used in steel stiffened and honeycomb type doors.
The Access Panel frame should use with 0.8 to 1.5 mm Galvanized sheet as per the approvals.
The Access Panel is welded from as per the Approval for the fire door.
BS 476 part 22 standards
Integrity up to 240 minutes
Approval | Standard | Infill | Door | Range | Leaf Height (mm) | Leaf width (mm) | Max Area (sq.m) | Fire Rating (Min) |
Intertek | BS 476-Part 22: 1987 | Honey comb | Double | From | 2642 | 872 | 2.3 | 30/60/90/120 |
To | 2110 | 1092 | ||||||
Intertek | BS 476-Part 22: 1987 | Honey comb | Double | From | 2438 | 875 | 2.3 | 180 |
To | 2117 | 1008 | ||||||
Intertek | BS 476-Part 22: 1987 | Honey comb | Double | Max | 2032 | 840 | 1.706 | 240 |
Intertek | BS 476-Part 22: 1987 | Honey comb | Single | From | 2642 | 918 | 2.425 | 30/60/90/120 |
To | 2110 | 1149 | ||||||
Intertek | BS 476-Part 22: 1987 | Honey comb | Single | From | 2438 | 921 | 2.425 | 180 |
To | 2117 | 1060 | ||||||
Intertek | BS 476-Part 22: 1987 | Honey comb | Single | Max | 2032 | 884 | 1.796 | 240 |
Intertek | BS 476-Part 22: 1987 | Rockwool | Double | From | 2337 | 877 | 2.049 | 30/60/90/120 |
To | 2120 | 966 | ||||||
Intertek | BS 476-Part 22: 1987 | Rockwool | Double | Max | 2032 | 840 | 1.706 | 160 |
Q-MARK | BS 476-Part 22: 1987 | Honey comb | Single | From | 2456 | 991 | 2.433 | 120 |
To | 2230 | 1092 | ||||||
Q-MARK | BS 476-Part 22: 1987 | Honey comb | Double door | From | 2456 | 991 | 2.433 | 120 |
To | 2230 | 1092 | ||||||
Q-MARK | BS 476-Part 22: 1987 | Rockwool | Single door | From | 2438 | 1092 | 2.662 | 90 |
To | 2686 | 991 | ||||||
Q-MARK | BS 476-Part 22: 1987 | Rockwool | Double door | From | 2438 | 1092 | 2.662 | 120 |
To | 2686 | 991 |
